HP ProBook 6450b

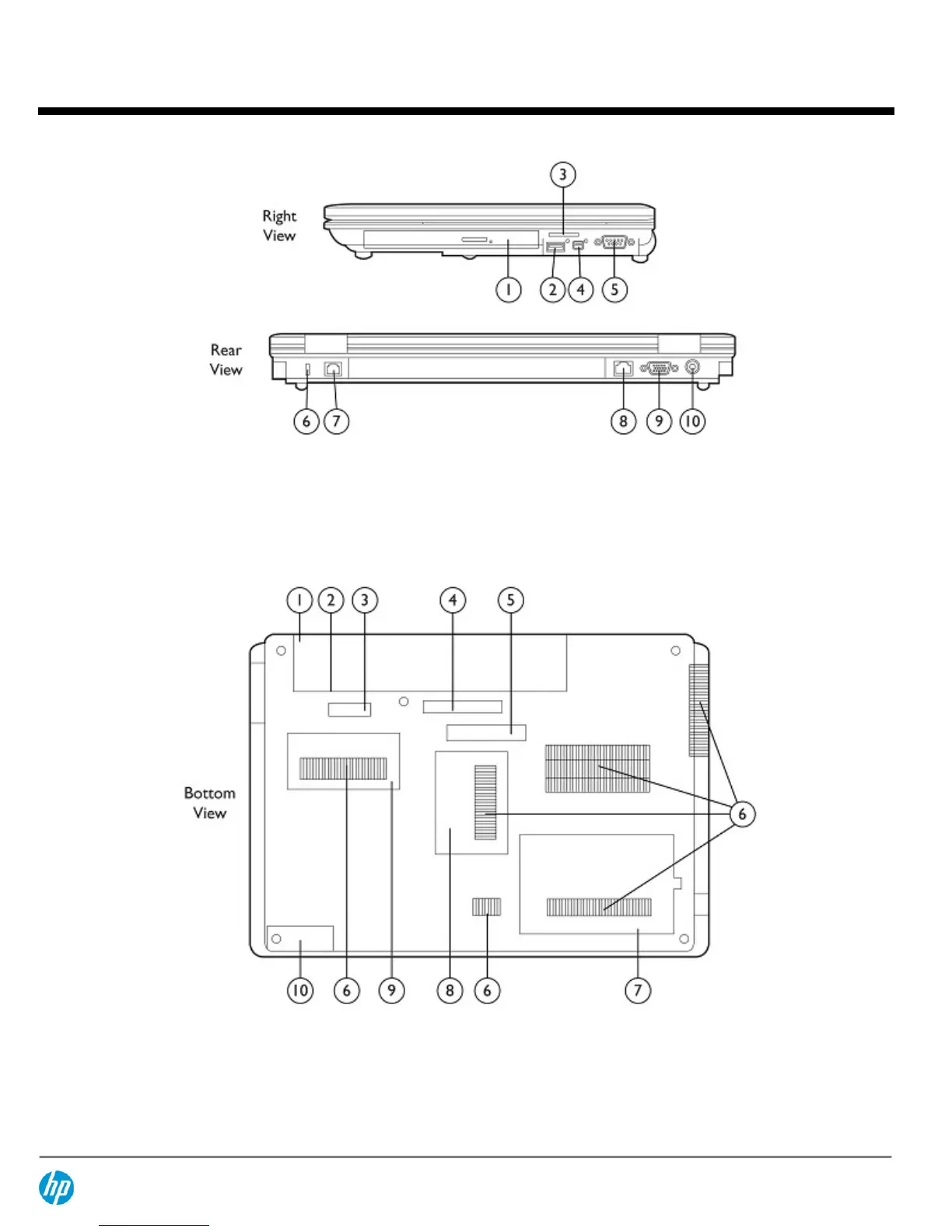

1. Upgrade Bay (optical drive or second hard drive) 6. Lock slot
2. (1) USB 2.0 port 7. RJ-11/modem port
3. Media Card Reader 8. RJ-45/Ethernet port
4. 1394a port 9. VGA/external monitor connector
5. Serial port 10. Power connector
1. Battery bay 6. Vents
2. SIM slot for WWAN (select models) – inside battery bay 7. Hard drive bay
3. Battery release latch 8. Memory module compartment
4. Docking connector 9. WLAN/WWAN module compartment (select models)
5. Secondary battery connector 10. Bluetooth module compartment
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
DA - 13616 Canada — Version 17 — February 15, 2012 Page 4
