8.

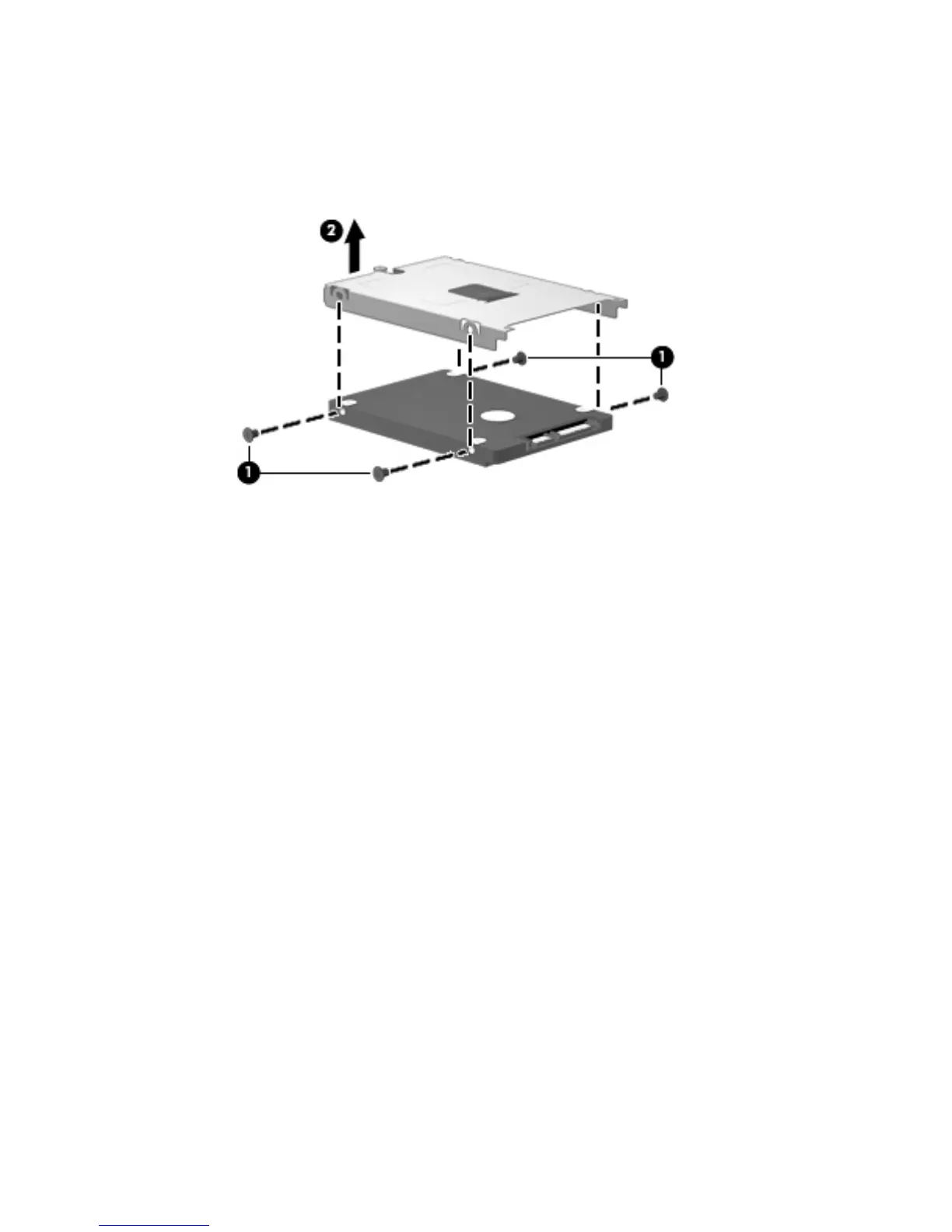

If it is necessary to replace the mass storage device bracket, follow these steps:
a. Remove the four Phillips PM3.0×3.0 screws (1) that secure the mass storage device bracket
to the mass storage device.
b. Lift the bracket (2) straight up to remove it from the mass storage device.
Reverse this procedure to reassemble and install the mass storage device.
Component replacement procedures
85
