Removal and replacement procedures
Maintenance and Service Guide 4–79

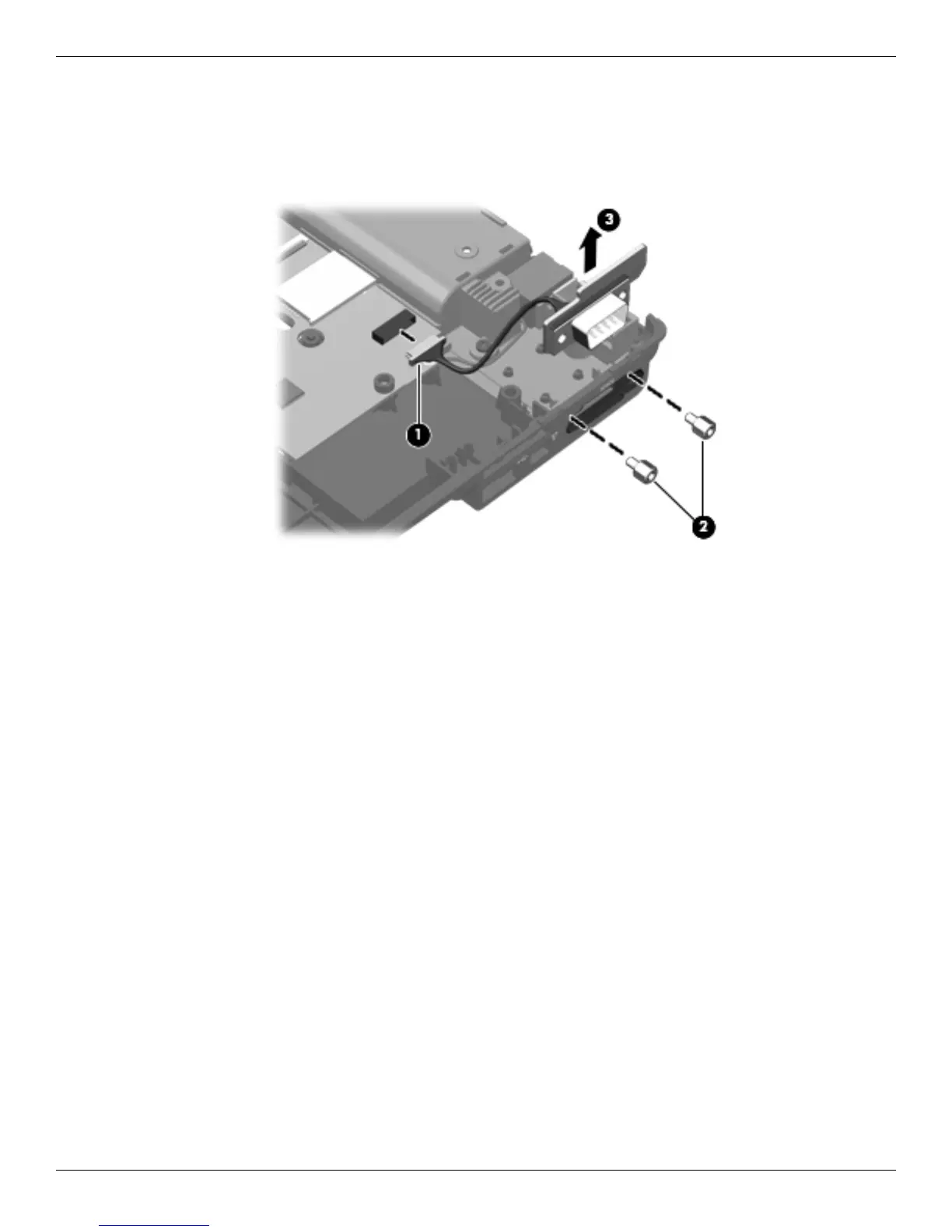

Remove the serial connector and cable:
1. Disconnect the serial connector cable 1 from the system board.
2. Remove the two Hex HM5.0×10.0 screw locks 2 that secure the serial connector to the base enclosure.
3. Remove the serial connector 3.
Reverse this procedure to install the serial connector and cable.
