B-18

Monitoring and Analyzing Switch Operation

Status and Counters Data

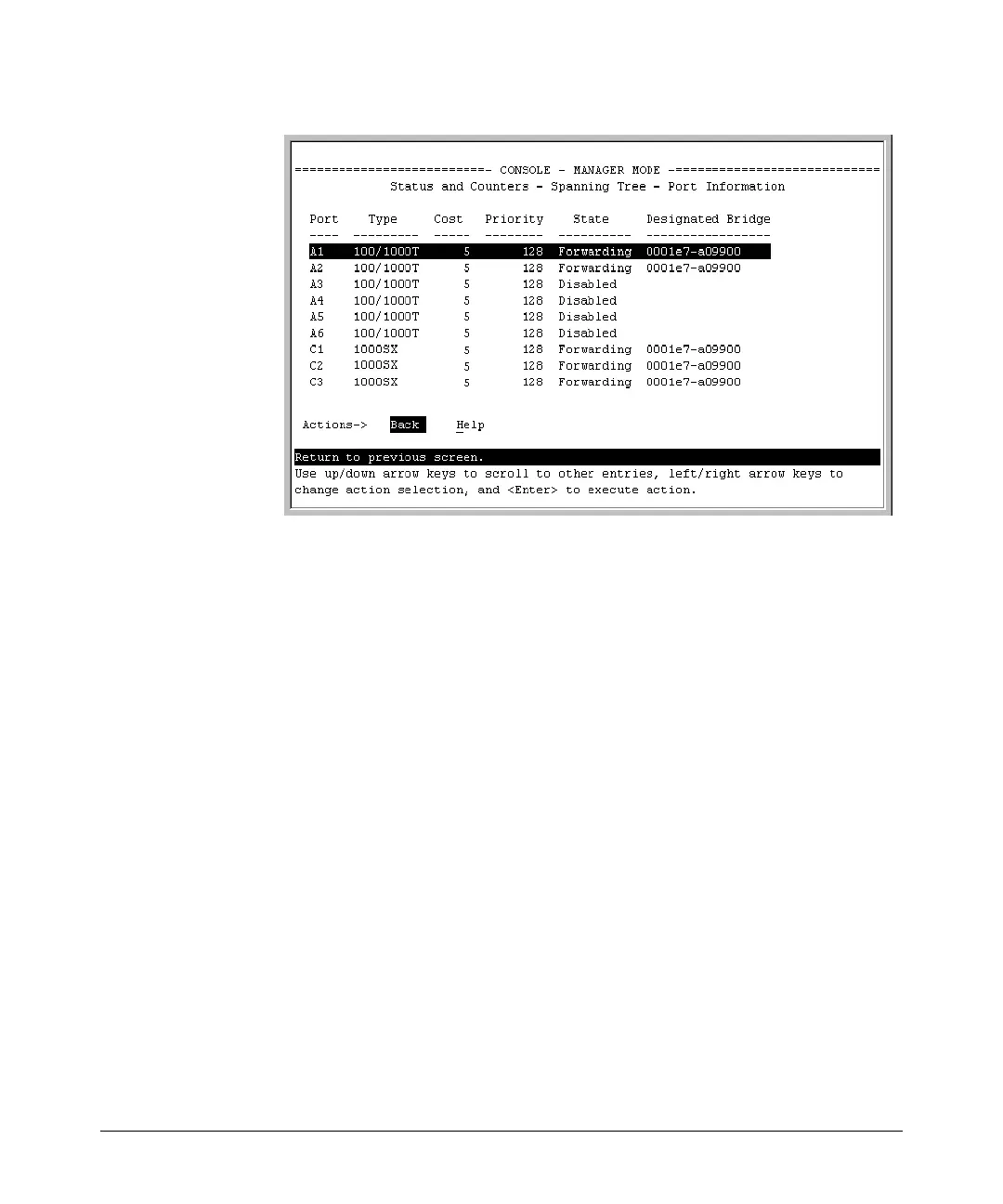

Figure B-13. Example of STP Port Information

CLI Access to STP Data

This option lists the STP configuration, root data, and per-port data (cost,

priority, state, and designated bridge).

Syntax: show spanning-tree

ProCurve> show spanning-tree
