HP ProDesk 600 Illustrated Parts & Service Map

HP ProDesk 600 G1, SFF Chassis 723285-001 page 4
System Board

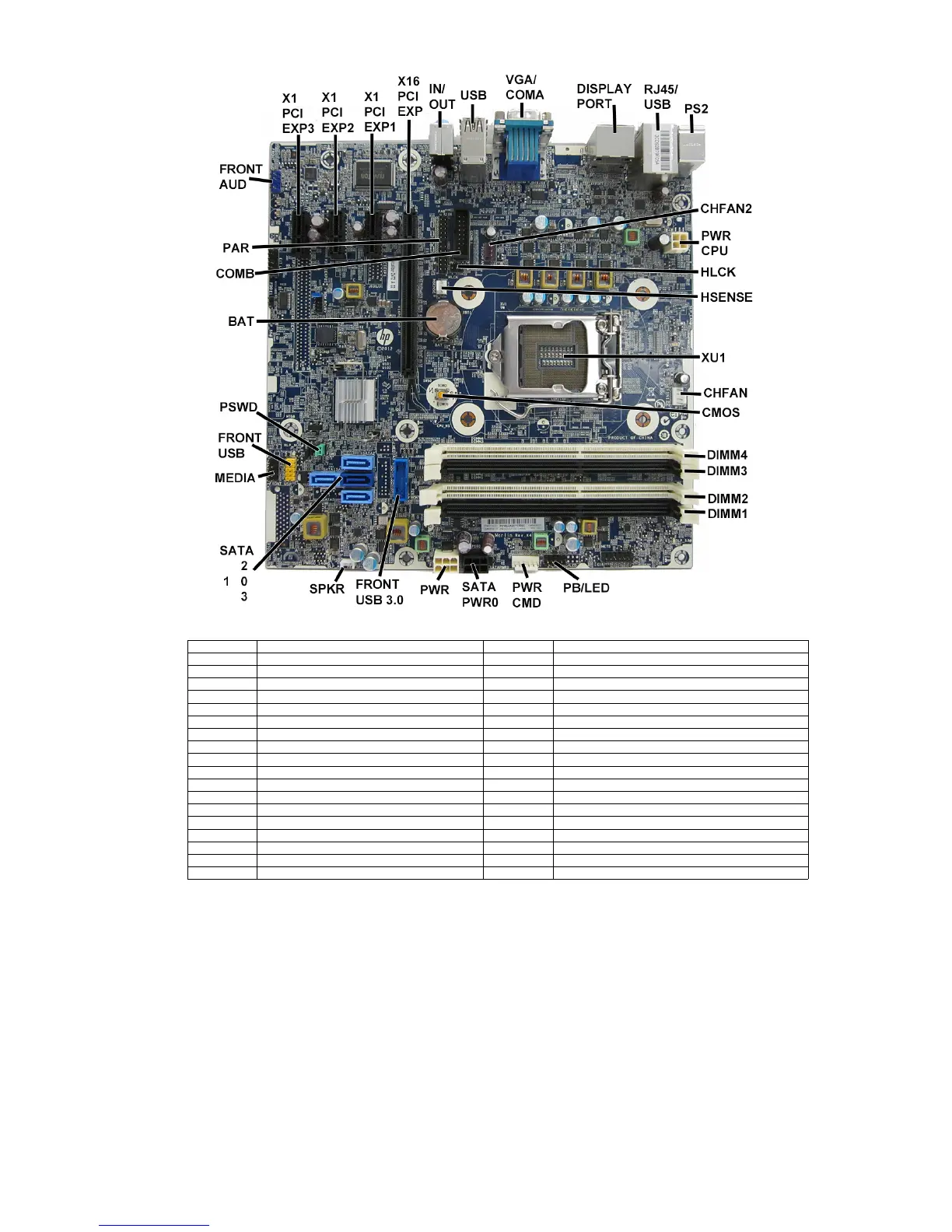

System Board Connectors and Jumpers (component location may vary)
X1PCIEXP3 PCI Express x1 slot DIMM2 Memory socket - Channel B
X1PCIEXP2 PCI Express x1 slot DIMM1 Memory socket - Channel B
X!PCIEXP1 PCI Express x1 slot PB/LED Power switch connector
X16PCIEXP PCI Express x16 slot PWR CMD Power connector
IN//OUT Audio connectors SATA PWR0 Optical drive power connector
USB USB connectors PWR Main power connector
VGA/COMA Monitor connector/serial port FRONT USB 3.0 Front USB 3.0 port connector
DISPLAYPORT DisplayPort connector SPKR Speaker connector
RJ45/USB Network/USB connectors SATA0 Primary hard drive
PS2 PS/2 keyboard/mouse connectors SATA1 Any SATA Device other than the primary hard drive
CHFAN2 System fan connector SATA2 Any SATA Device other than the primary hard drive
PWRCPU CPU power connector SATA3 Any SATA Device other than the primary hard drive
HLOCK Hood lock connector MEDIA Media card reader connector
HSENSE Hood sensor connector FRONT_USB 1st USB connector
XU1 Processor socket PSWD Password header
CHFAN Fan connector BAT RTC battery socket
CMOS CMOS header COMB Serial port
DIMM4 Memory socket - Channel A PAR Parallel port connector
DIMM3 Memory socket - Channel A FRNT AUD Front panel connector
