Server component identification 53
Battery-Backed Write Cache Enabler LED statuses
Server Status LED Status Battery Module Status
Server is on and has normal run
time
Green = On Fast charging
Green = Off Trickle charging
Amber = On
short exists in the connection of one or more of
the four button cells within the battery module
Amber = Blinking
An open exists in the circuit between the positive
and negative terminals of the battery module
Amber = Off Normal
Server is on and is in the first 30
seconds after power up
Green = On
Amber = On
Temporary lock-out state; data was lost due to
cable being detached
Server is off and is in data
retention mode
mber = Blinking every
15 seconds
User data held in write cache is being backed
up

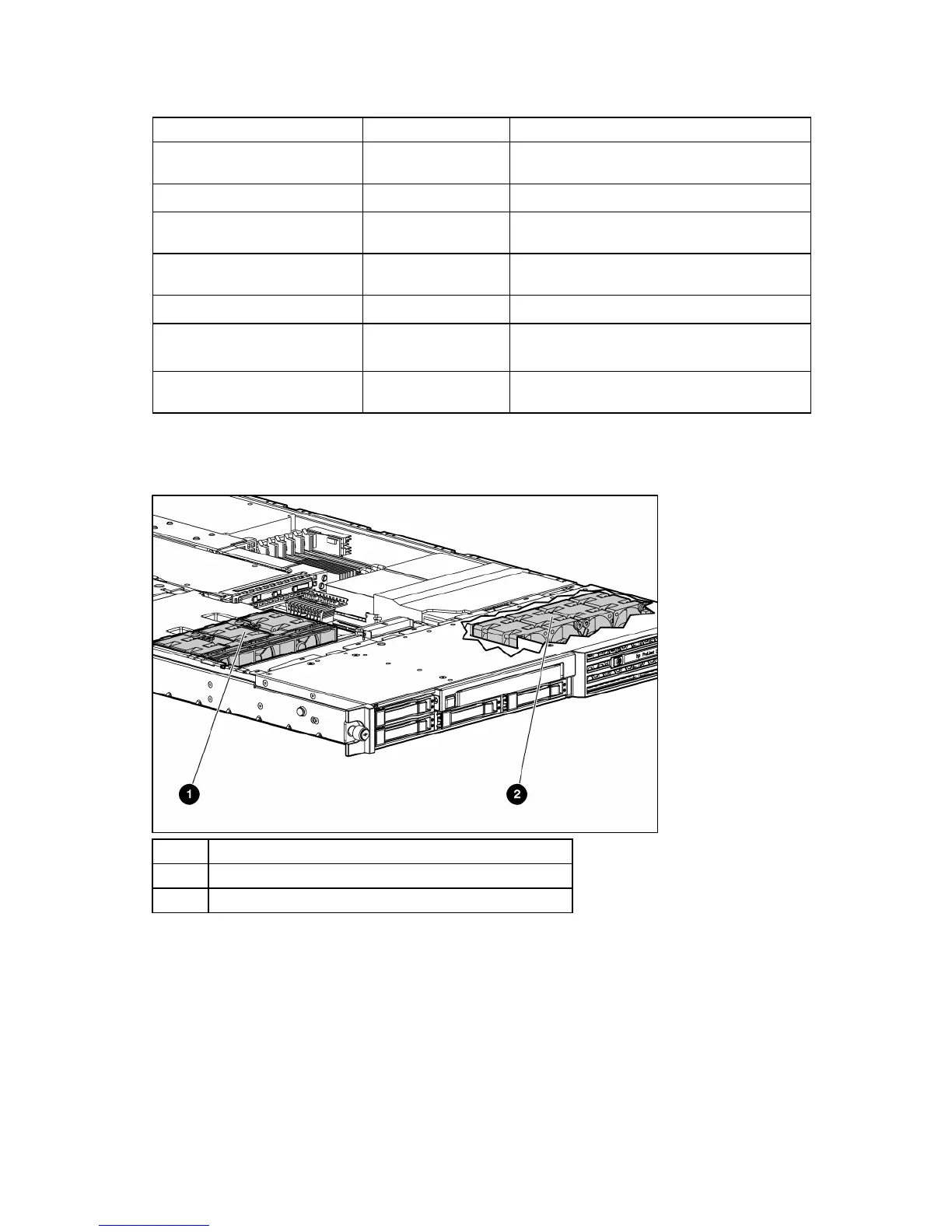

Fan module locations
Item Description
1 Power supply zone fan module
2 Processor zone fan module
