HP ProLiant DL370 Generation 6 User Manual

HP ProLiant ML370 G6 (Tower)

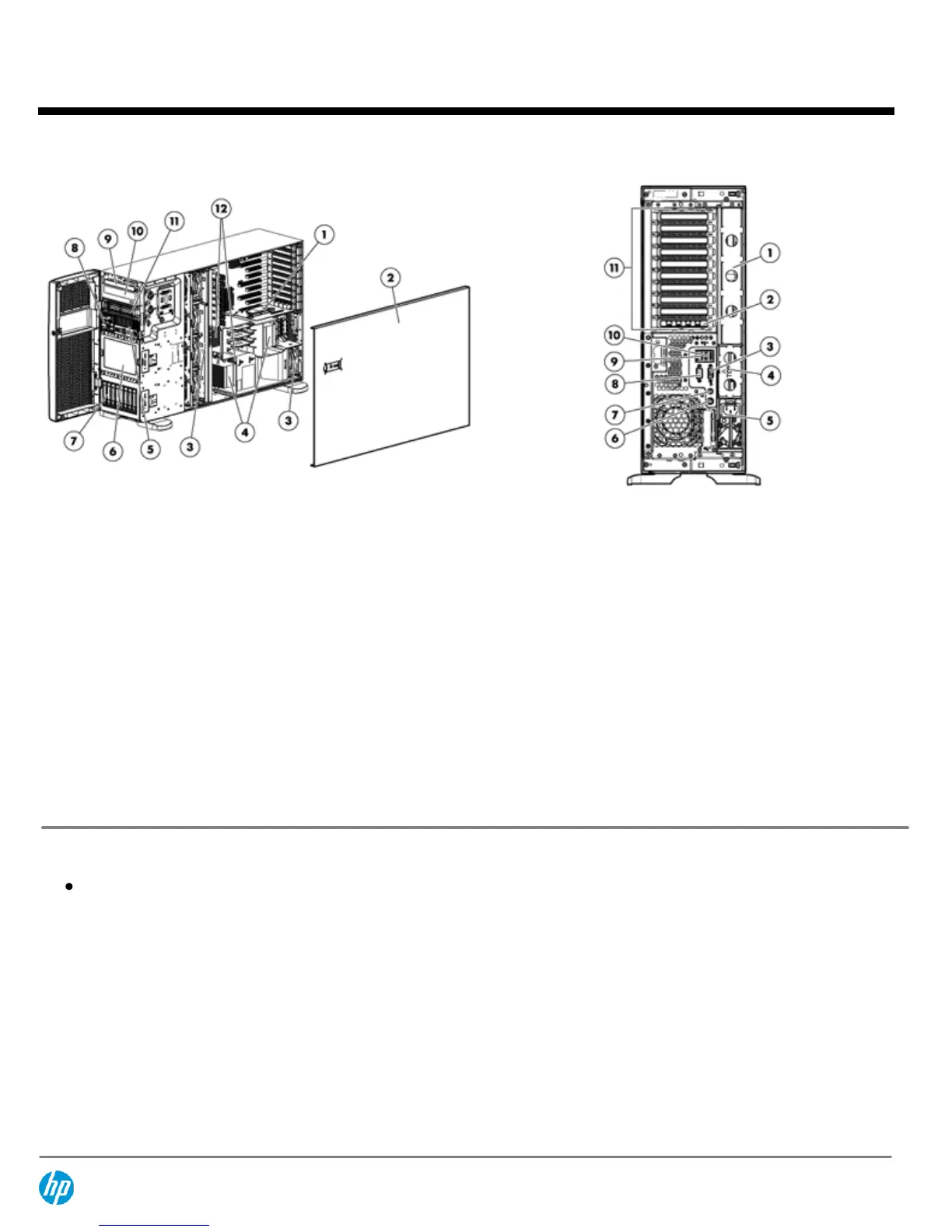

Front View: Rear View:
1. 9 Available PCI-Express Gen2 slots; PCI-X (optional) 1. PCI-X Expansion slot riser bay
2. Quick removal access panel - Tool-less access to all system
components for easy in rack serviceability
2. Four NIC connectors
3. Three Hot-plug fans (standard) Five (optional) 3. Video connector
4. Intel Six or Quad-Core Processor (Performance model
includes two processors)
4. Power supply bay 2
5. Power on/standby button 5. Power supply bay 1 (populated)
6. Optional drive cage bay 6. Mouse connector
7. SAS/SATA drive cage 7. Keyboard connector
8. System Insight Display for quick and easy server diagnostics 8. Serial connector
9. Optional slimline optical drive bay 9. iLO 2 connector
10. DVD-ROM drive 10. Two USB connectors
11. Removal media bay 11. 9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
12. Eighteen slots for DDR3 Registered or Unbuffered Memory
What's New
Support for new HP hard drives, UPS and NIC
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Overview
DA - 13242 Worldwide — Version 58 — February 27, 2013 Page 2

HP ProLiant DL370 Generation 6 Specifications

General

Memory	Up to 192 GB DDR3 Registered or Unbuffered DIMMs
Chipset	Intel 5520 chipset
Processor	Intel Xeon 5500 and 5600 series
Storage	Up to 16 SFF (2.5-inch) or 8 LFF (3.5-inch) drives
Network	Embedded NC382i Dual Port Gigabit Ethernet or optional adapters
Power Supply	1200W
Expansion Slots	Up to 6 PCI-e Gen2 slots
Management	Integrated Lights-Out 2 (iLO 2) standard
Form Factor	5U rack
