Component identification 83

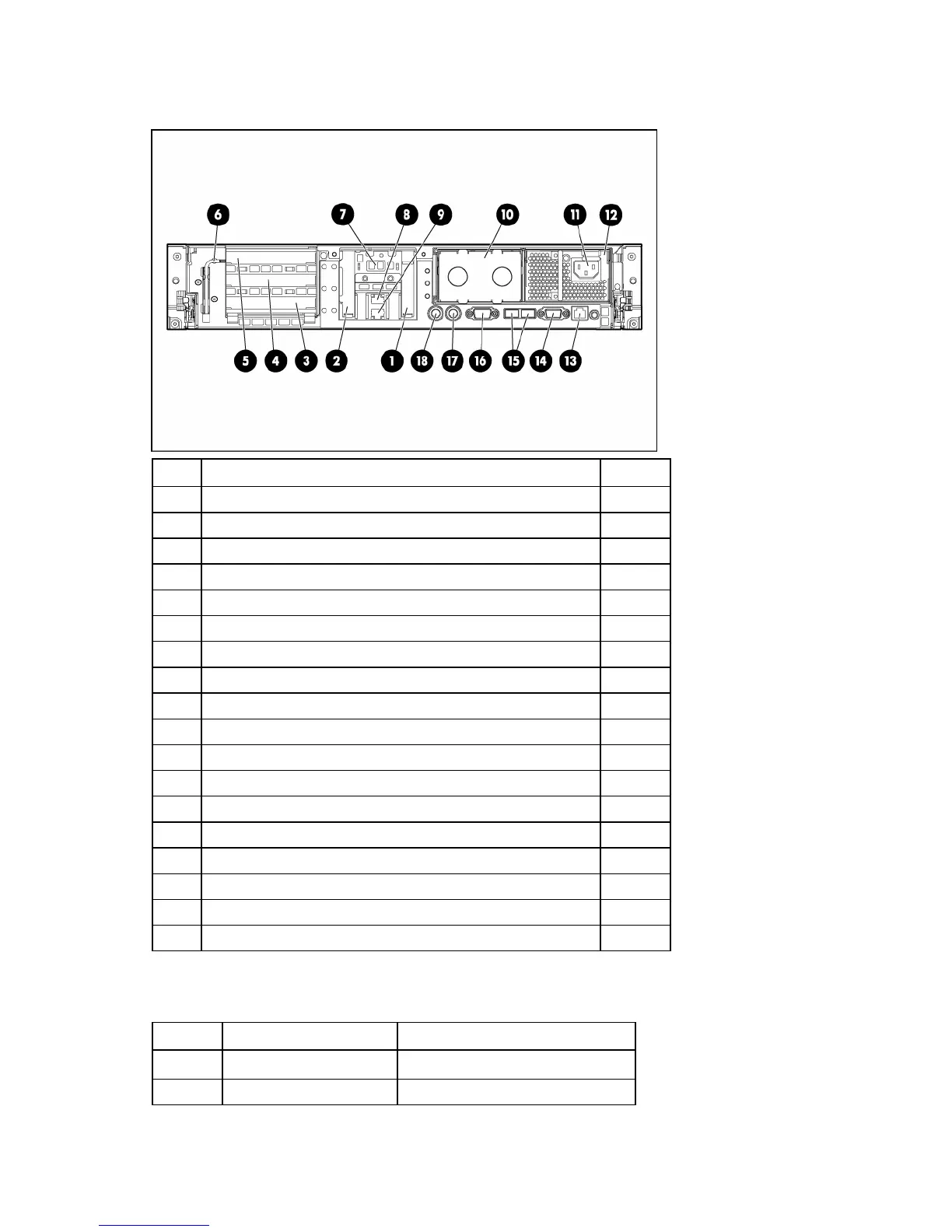

Rear panel components
Item Description Color
1 Expansion slot 1 —
2 Expansion slot 2 —
3 Expansion slot 3 —
4 Expansion slot 4 —
5 Expansion slot 5 —
6 T-10/T-15 Torx screwdriver —
7 External option blank —
8 NIC 2 connector —
9 NIC 1 connector —
10 Power supply bay 2 —
11 Power cord connector Black
12 Power supply bay 1 (populated) —
13 iLO 2 connector —
14 Video connector Blue
15 USB connectors (2) Black
16 Serial connector —
17 Mouse connector Green
18 Keyboard connector Purple
PCI expansion slot definitions
Item PCIe Mixed PCIe/PCI-X
1 x4, slot 1, bus A x4, slot 1, bus A
2 x4, slot 2, bus B x4, slot 2, bus B
