Component identification 84
Item PCIe Mixed PCIe/PCI-X
3 x4, slot 3, bus C x8, slot 3, bus C
4 x8, slot 4, bus D 64-bit/133-MHz, slot 4, bus D
5 x8, slot 5, bus E 64-bit/133-MHz, slot 5, bus D
x4 slots: x8 cards are supported, but will run at x4 speeds.
x8 slots: x16 cards are supported, but will run at x8 speeds.
All slots are non-hot-plug.

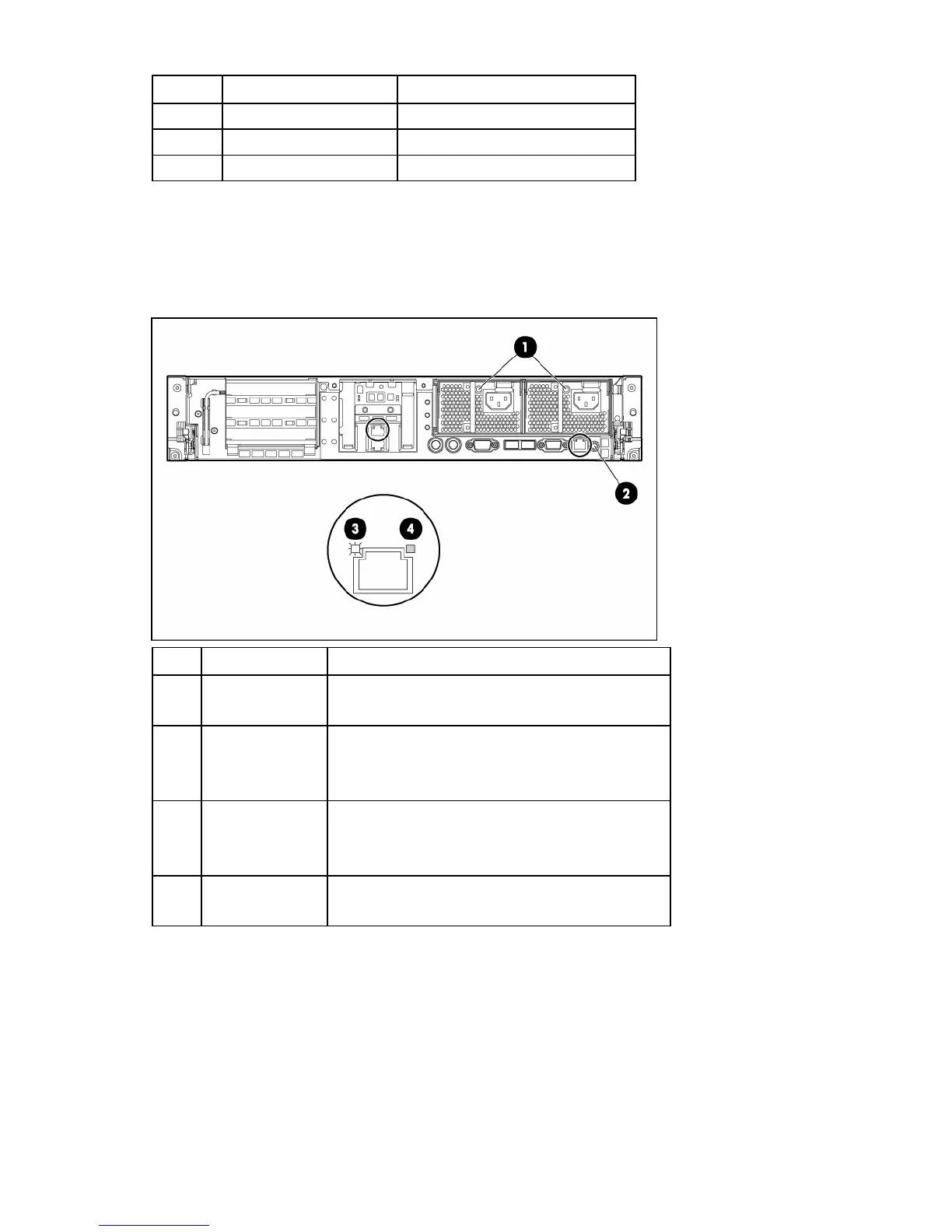

Rear panel LEDs and buttons
Item Description Status
1 Power supply LED Green = Normal
Off = System is off or power supply has failed
2 UID LED button Blue = Activated
Flashing = System being remotely managed
Off = Deactivated
3 NIC/iLO 2 activity
LED
Green = Network activity
Flashing = Network activity
Off = No network activity
4 NIC/iLO 2 link
LED
Green = Network link
Off = No network link
