Removal and Replacement Procedures
IDE CD-ROM Drive Cable Routing

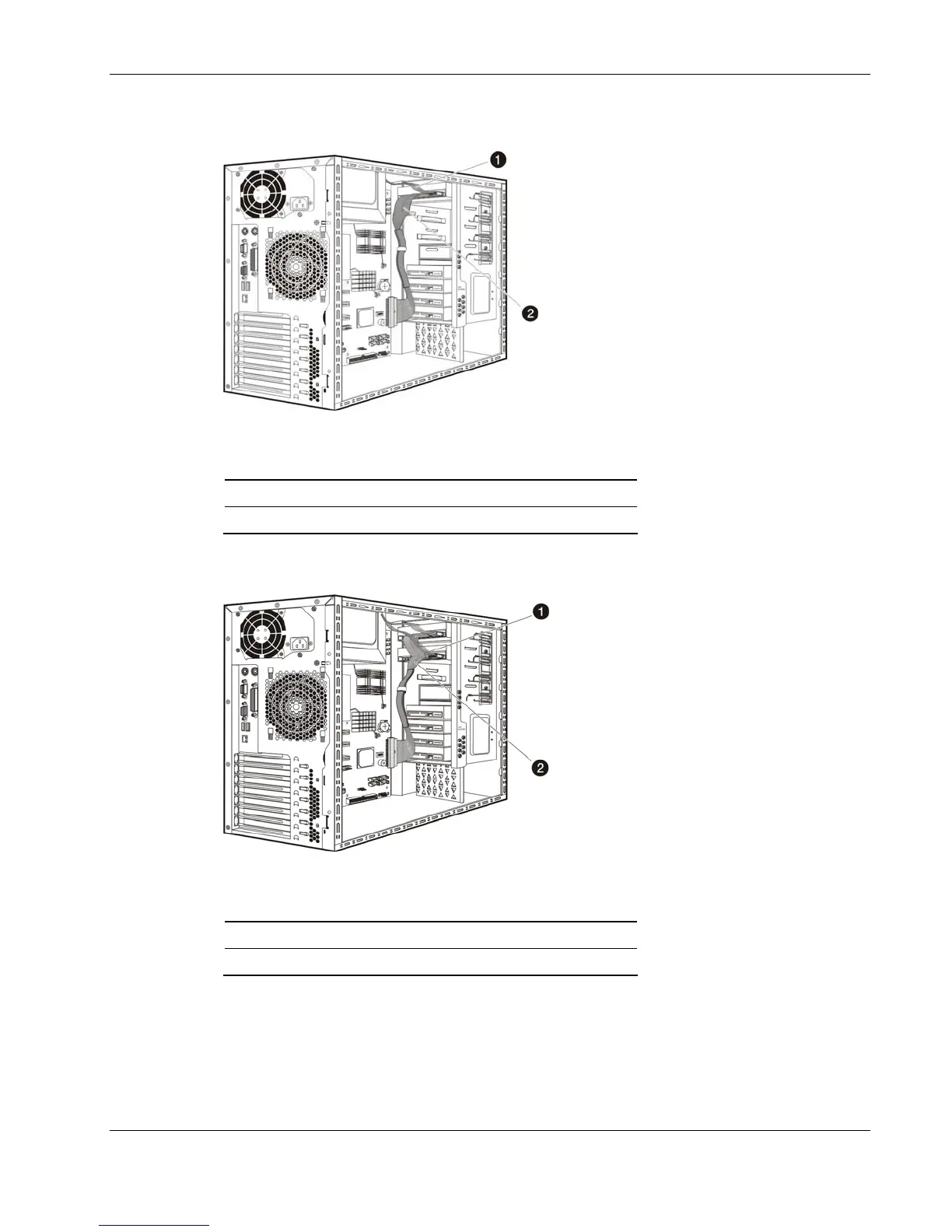

Figure 2-8: IDE CD-ROM drive cable routing
Item Description
1 IDE CD-ROM drive power cable
2 IDE CD-ROM drive data cable
Optional Media Drive Cable Routing
Figure 2-9: Optional media drive cable routing
Item Description
1 Optional media drive power cable
2 Optional media drive data cable
HP ProLiant ML110 Generation 2 Server Maintenance and Service Guide 2-11
