Removal and Replacement Procedures
Non-hot-plug SCSI/SATA HDD Cable Routing

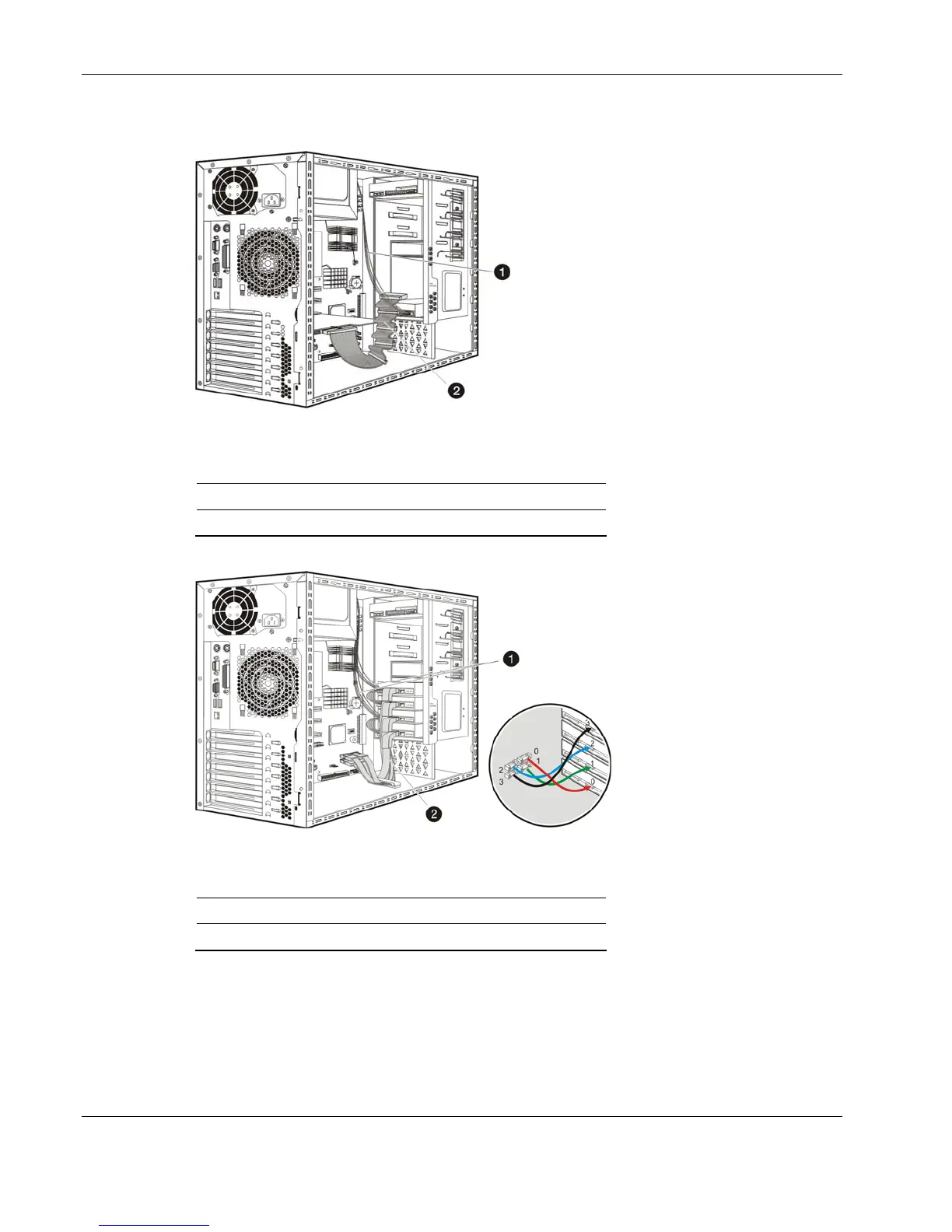

Figure 2-10: Non-hot-plug SCSI HDD cable routing
No. Description
1 SCSI power cable
2 SCSI data cable
Figure 2-11: Non-hot-plug SATA HDD cable routing
No. Description
1 SATA power cables
3 SATA data cables
