Removal and Replacement Procedures

Hot-plug SATA HDD Cable Routing

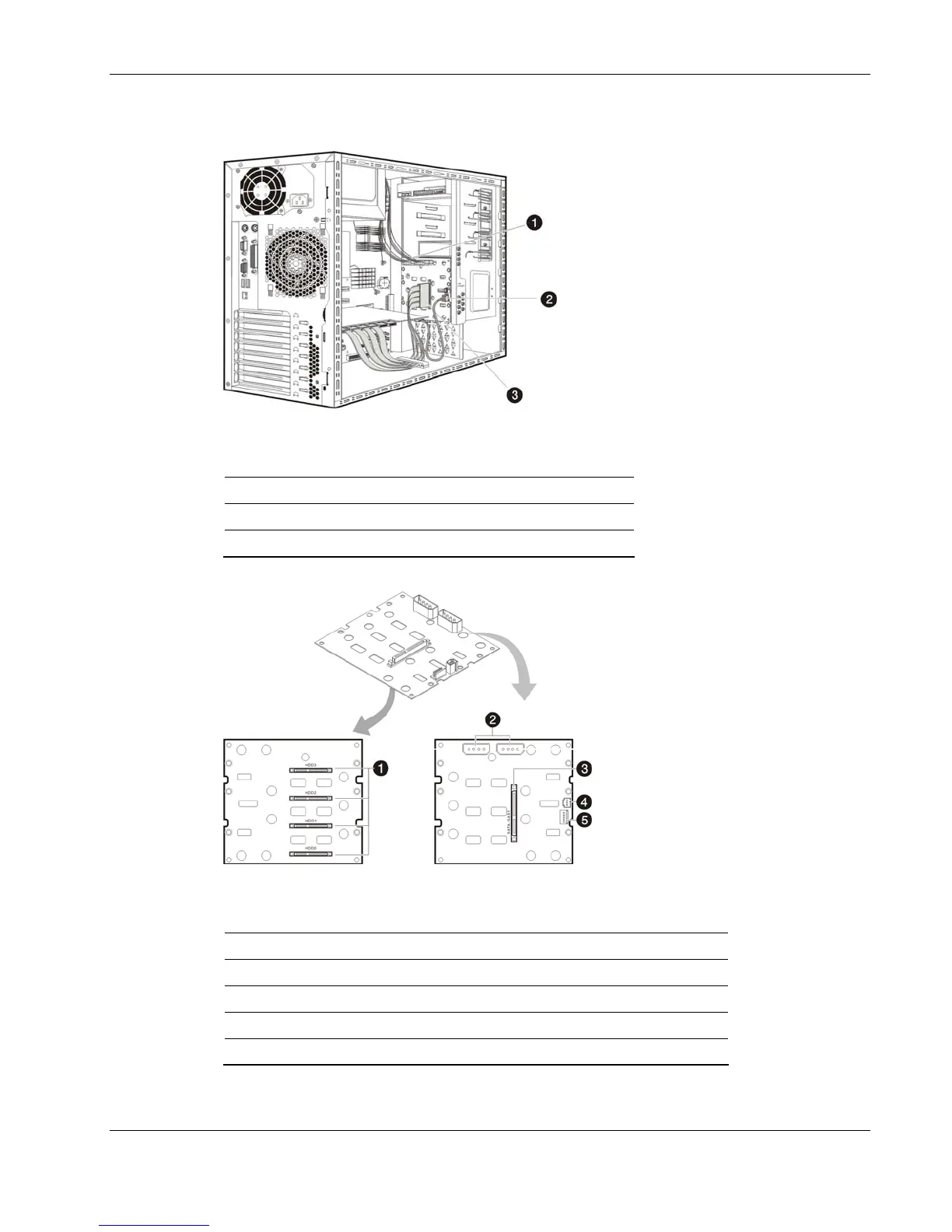

Figure 2-12: Hot-plug SATA HDD cage cable routing

No. Description

1 SATA power cables

2 4-in-1 SATA data cables

3 SATA LED cable

Figure 2-13: Hot-plug SATA HDD backplane board

No. Connector Description

1 CN8 – CN11 SATA HD connectors

2 CN1 – CN2 SATA power connectors

3 CN5 SATA 4-in-1 data connector

4 CN3 SATA I

C LED connector

5 CN7 PSOC ISP connector

HP ProLiant ML110 Generation 2 Server Maintenance and Service Guide 2-13
