Removal and Replacement Procedures

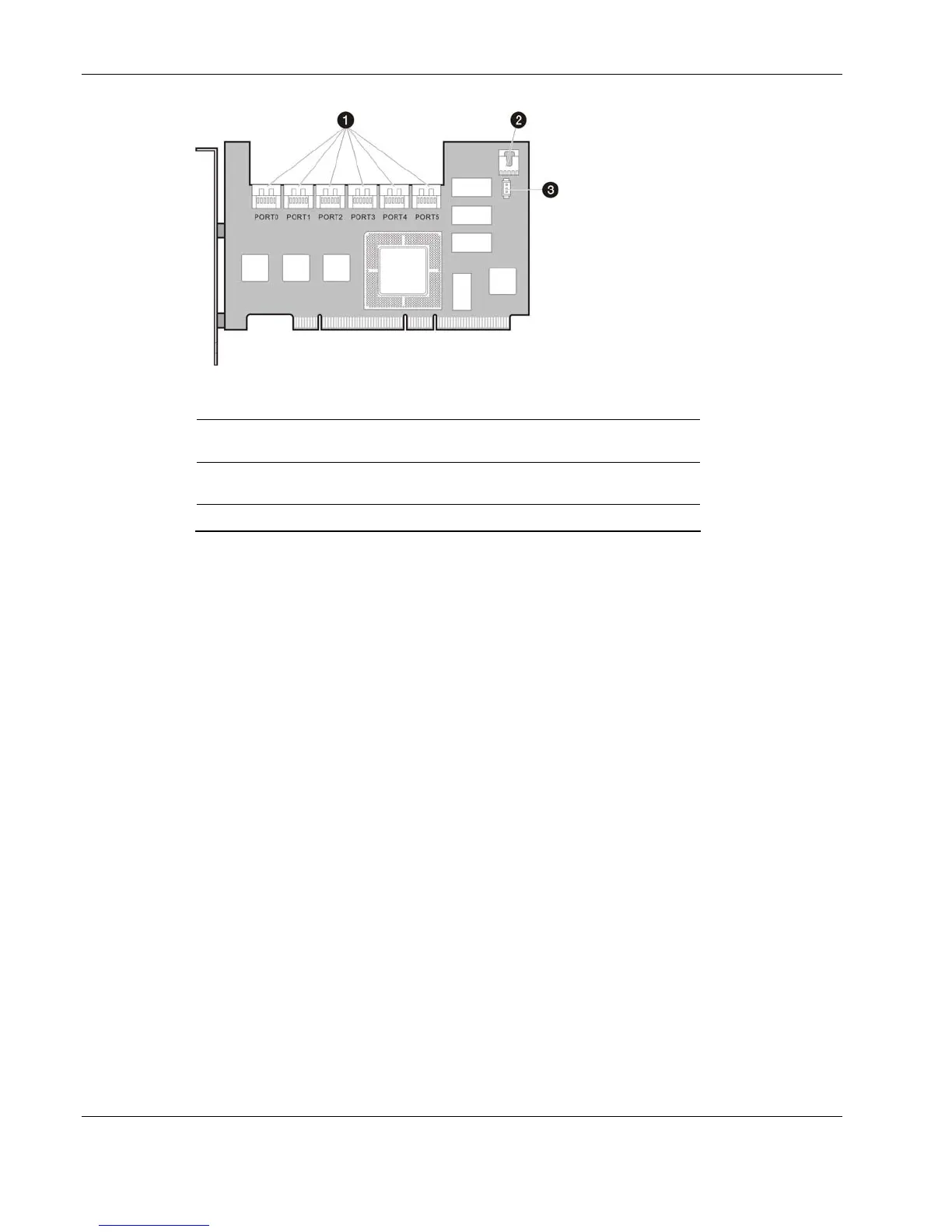

Figure 2-14: Hot-plug SATA HDD RAID card
No. Connector Description
1 PORT0 – PORT5 SATA HD connectors (connects to the HD
connectors on the backplane board)
2 I2C SATA I
2
C LED connector (connects to CN3 on
the backplane board)
3 ACT_LED SATA HD active LED connector
IDE CD-ROM Drive
To replace the IDE CD-ROM drive:
1. Perform steps 1-3 of the pre-installation instructions.
2. Remove the access panel.
3. Remove the front bezel.
4. Remove the currently installed CD-ROM drive from the server:
a. Disconnect the IDE power and data cables from the rear of the CD-ROM drive.
b. Press the drive-retaining lever.
c. Move the lever downward to release the bar from its retaining hook.
d. Gently pull out the CD-ROM drive from the chassis.
2-14 HP ProLiant ML110 Generation 2 Server Maintenance and Service Guide

HP ProLiant ML110 - G2 Server Specifications

General

Server Type	Tower
Chipset	Intel E7210
Memory Type	DDR SDRAM
Maximum Memory	4 GB
Optical Drive	Optional
Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Pentium 4
Storage Controller	Integrated SATA
Drive Bays	2 x 3.5" internal
Network Controller	Integrated Broadcom Gigabit Ethernet
Power Supply	300W
Operating System Support	Microsoft Windows Server 2003, Red Hat Linux
