Removal and replacement procedures 32

Front bezel

The front bezel must be removed to access the hard drives and the removable media devices.

To remove the front bezel:

1. Remove the access panel.

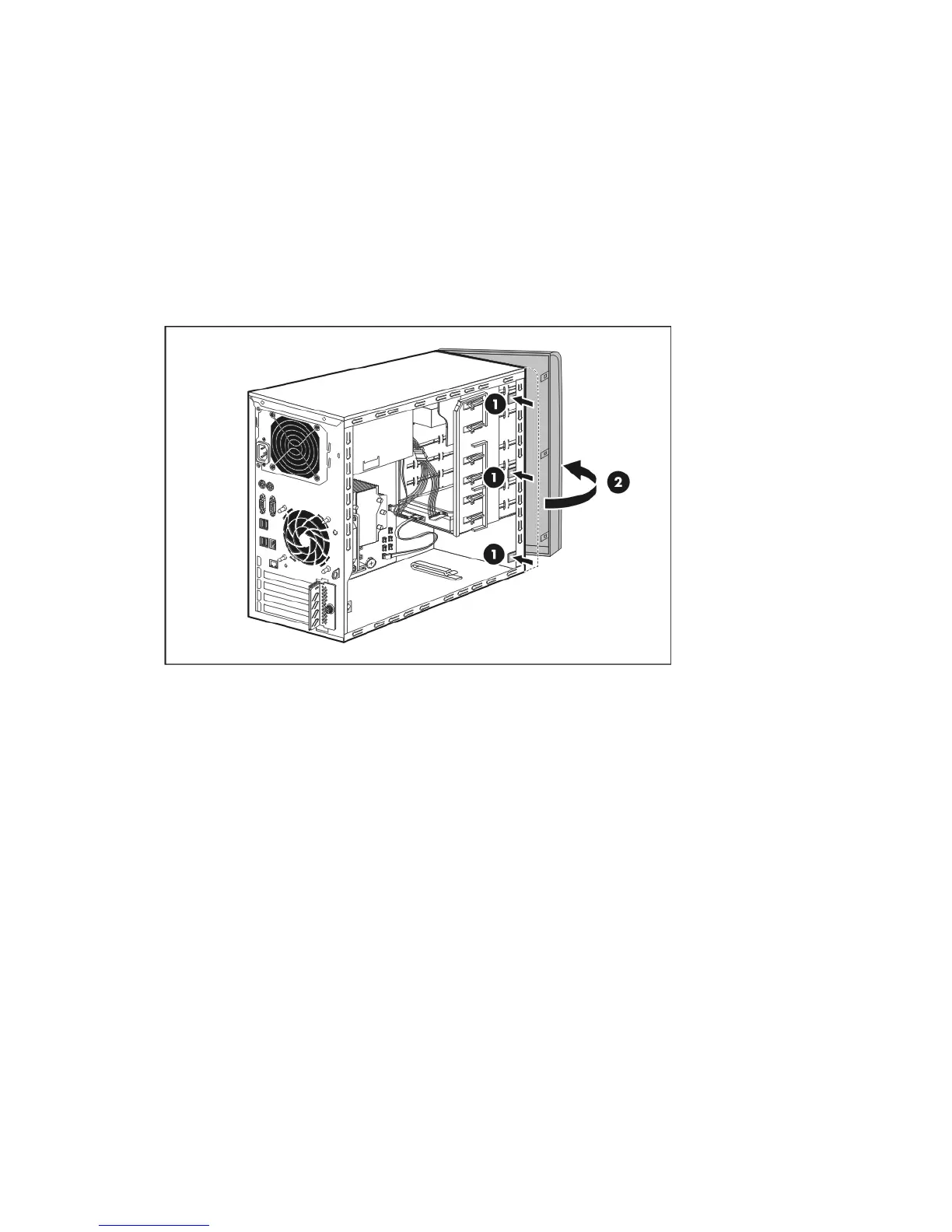

2. Remove the front bezel.

a. Press the three release tabs (marked by white arrows) located on the inner left edge of the

bezel (1).

b. Rotate the bezel out slightly, and then pull it away from the front panel (2).

3. Place the front bezel in a safe place for reinstallation later.
