Removal and replacement procedures 39
4.

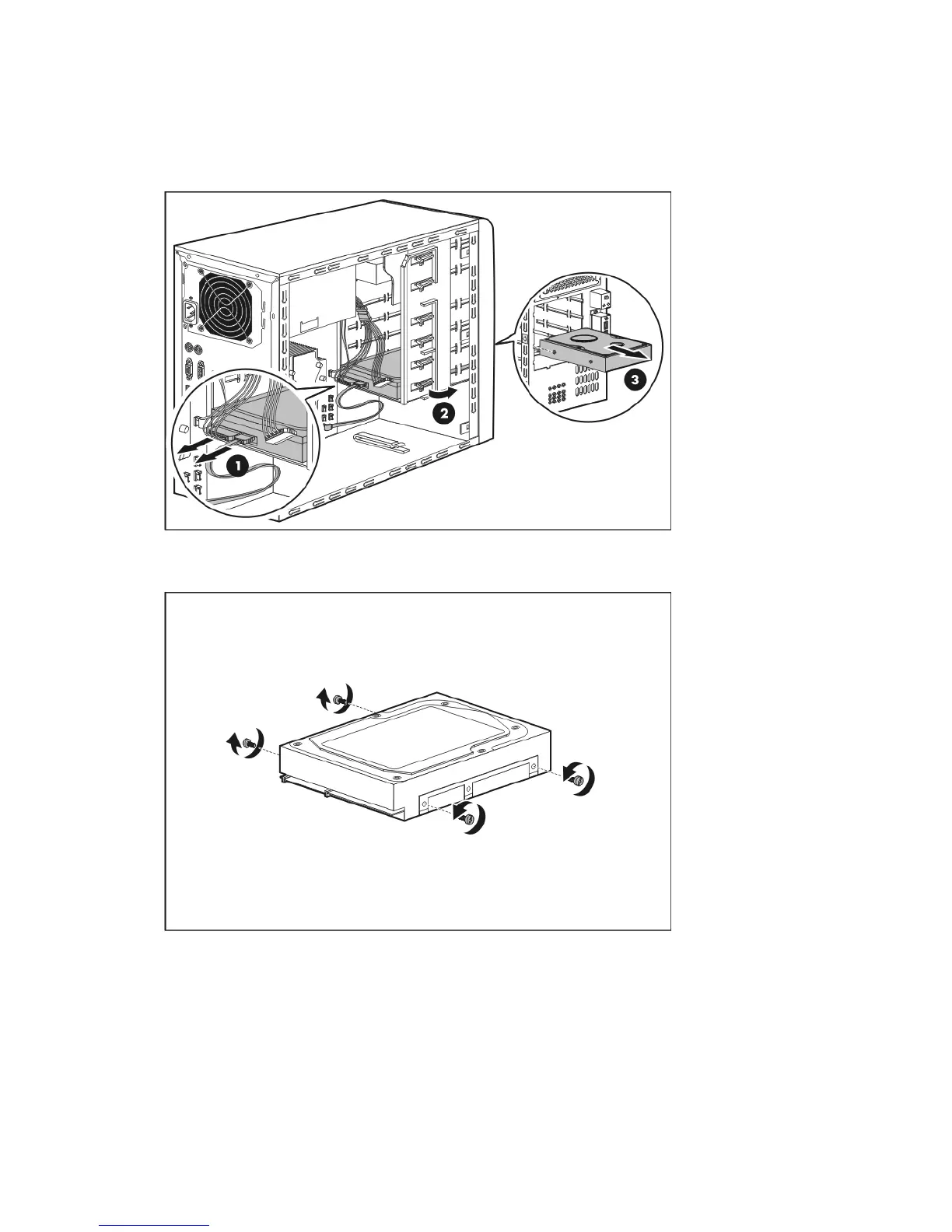

Remove the hard drive you intend to replace.
a. Disconnect the power and data cables from the back of the installed drive (1).
b. Pull and hold the corresponding drive release tab (2).
c. Slide the hard drive from the drive bay (3).
d. Remove four screws from the sides of the drive.
Reuse these screws when you install the new hard drive.
e. Place the old hard drive on a static-dissipating work surface or inside an anti-static bag.
5. Remove the new hard drive from its protective packaging.
6. If you are replacing an old hard drive, insert the four screws you removed in step 4-d into the
new drive.
If you are installing an additional hard drive, remove four spare HDD screws from the front
chassis, and then insert them into the new drive.
Proceed to step 7 for SATA drive installation instructions, or to step 8 for a SAS model.
