Removal and replacement procedures 40

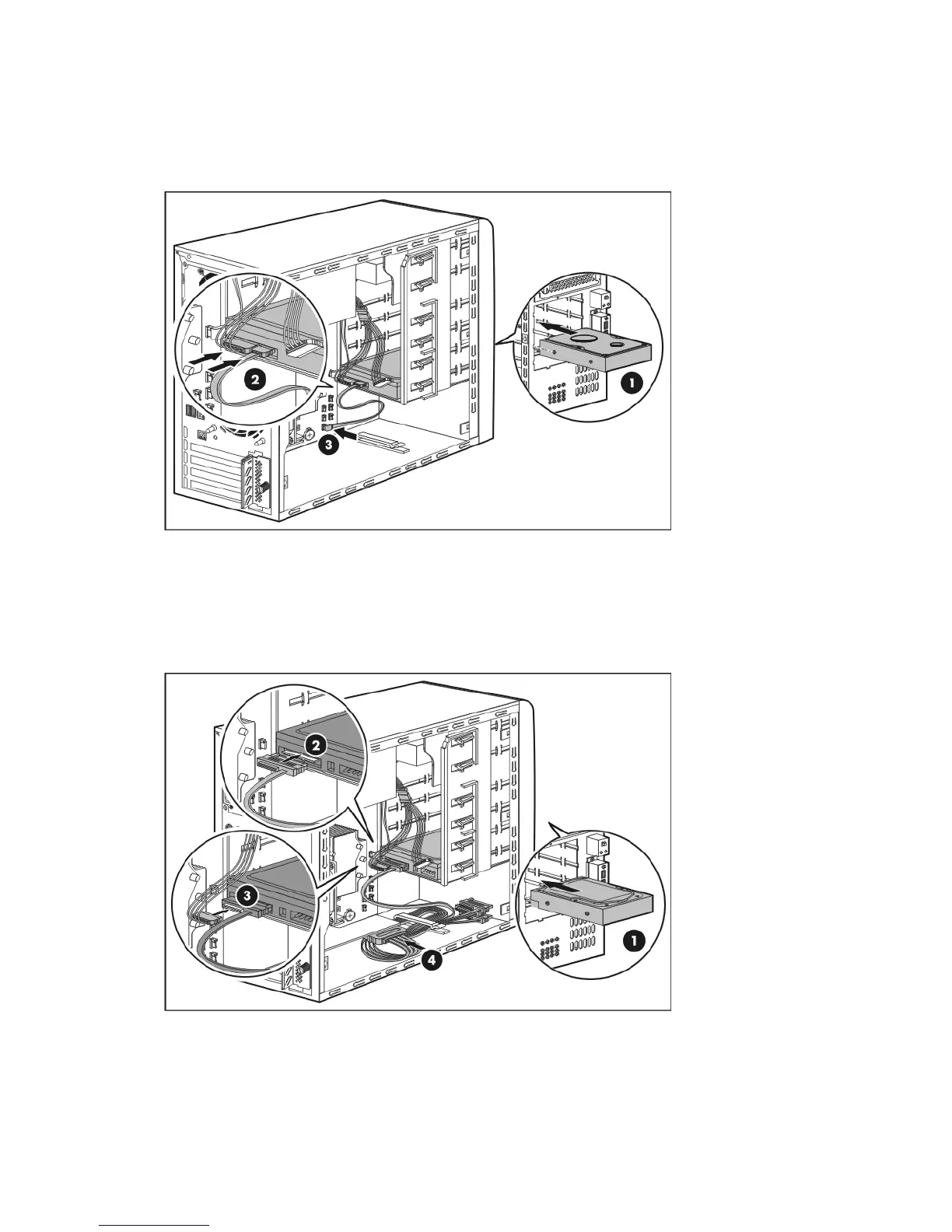

Install the new SATA hard drive.

a. Slide the new hard drive into the selected bay until it clicks into place (1).

b. Connect the SATA and power cables to the back of the hard drive (2).

c. Connect the SATA cable to the corresponding SATA connector on the system board (3).

8. Install the new SAS hard drive.

a. Slide the new hard drive into the selected bay until it clicks into place (1).

b. Connect the SAS HDD data cable to the back of the hard drive (2).

c. Connect the drive power cable to the back of the SAS HDD cable (3).

d. Connect the SAS HDD cable master connector to the SAS controller board (4).

e. Make sure the SAS LED cable is connected from the SAS controller board to the CN11

connector on the system board.

Go to page 34 for a view of the SAS HDD cable management diagram.
