Removal and replacement procedures 54

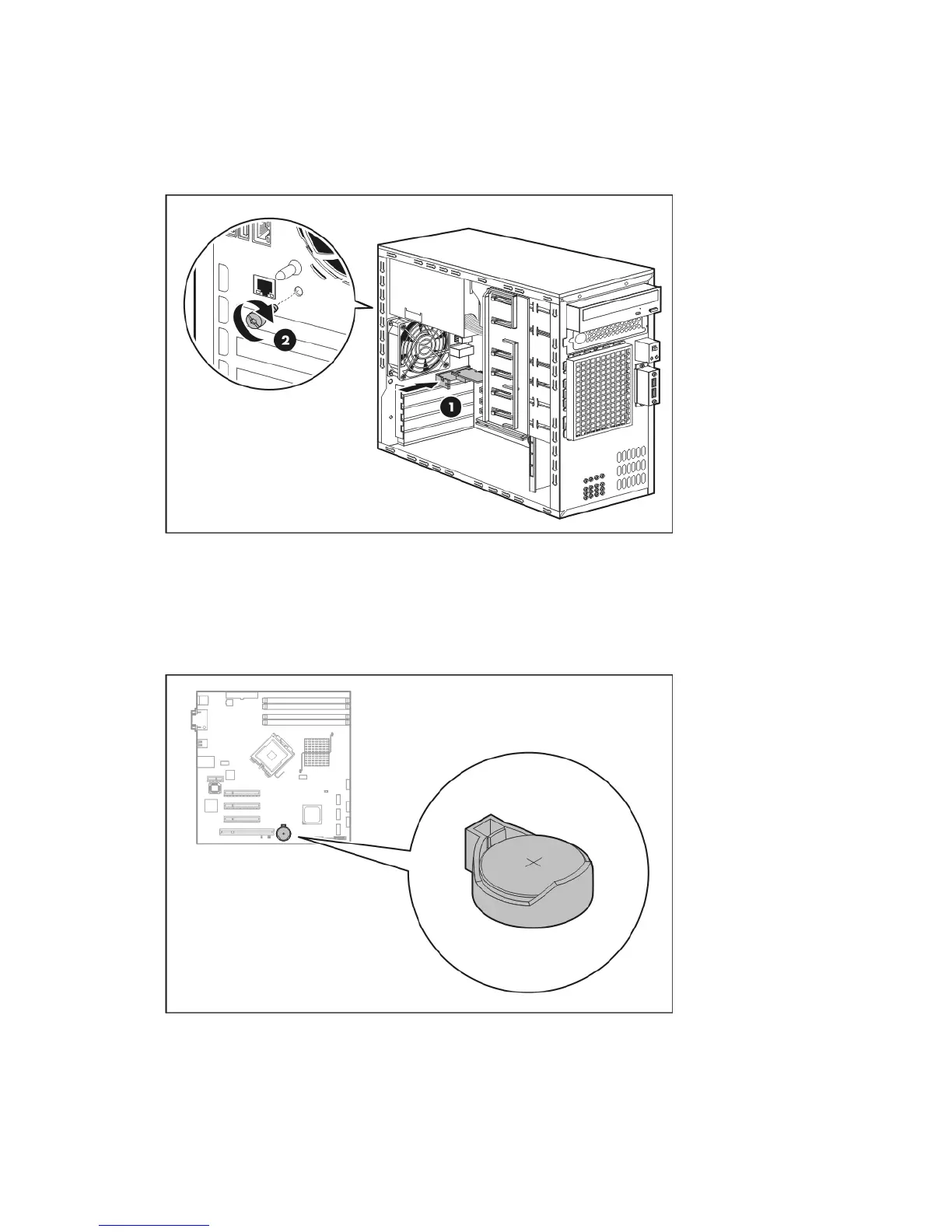

Install the IPMI card.

a. Align the card with the Lights-Out 100c upgrade connector, and then firmly seat the card on

the slot (1).

b. Secure the card with the screw you removed in step 4-a (2).

10. Perform the post-installation procedure.

System battery

The server uses a nonvolatile memory that requires a battery to retain system information when power

is removed. This 3-volt 200-mAh lithium coin cell battery is located on the system board.

If the server no longer automatically displays the correct date and time, the system battery that

provides power to the real-time clock may need to be replaced. Under normal use, battery life is 5 to

10 years.

Other manuals for HP ProLiant ML110 Generation 5

Questions and Answers:

Need help?

Do you have a question about the HP ProLiant ML110 Generation 5 and is the answer not in the manual?

General

Processor Sockets	1
Chipset	Intel 3200
Memory	Up to 8 GB DDR2
Memory Slots	4
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000 Sequence
Storage	Up to 4 SATA drives
Network	Embedded NC105i PCI Express Gigabit Server Adapter
Power Supply	365W
Optical Drive	Optional DVD-ROM or DVD+/-RW
Expansion Slots	1 PCIe x16, 2 PCIe x1, 1 PCI
