Removal and replacement procedures 57

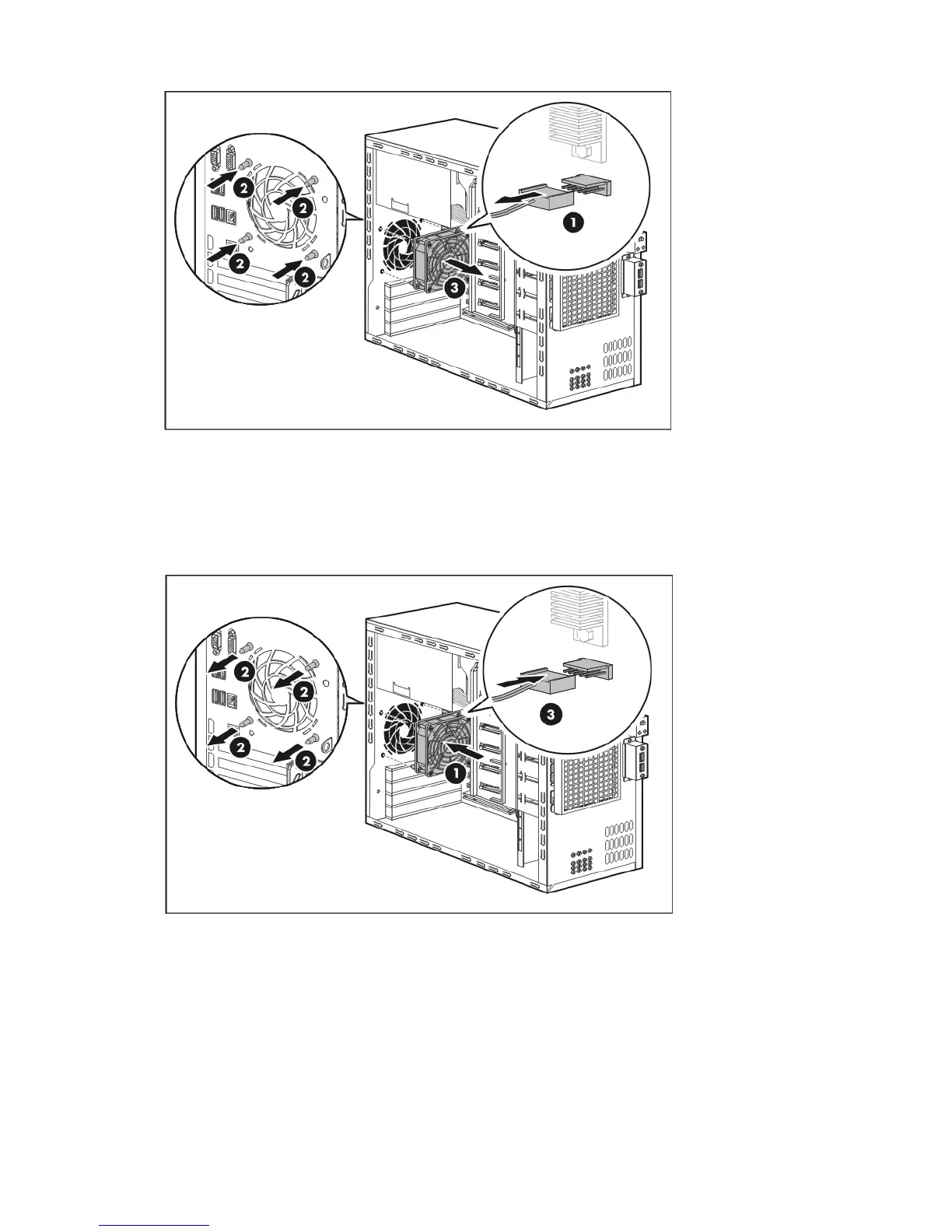

3. Install the new system fan.
a. Align the rubber bolts to their chassis holes (1).
b. While holding the new fan against the chassis, pull the rubber bolts through their chassis
holes (2).
c. Connect the system fan cable to its system board connector (3).
4. Perform the post-installation procedure.
