Removal and replacement procedures 48
a.

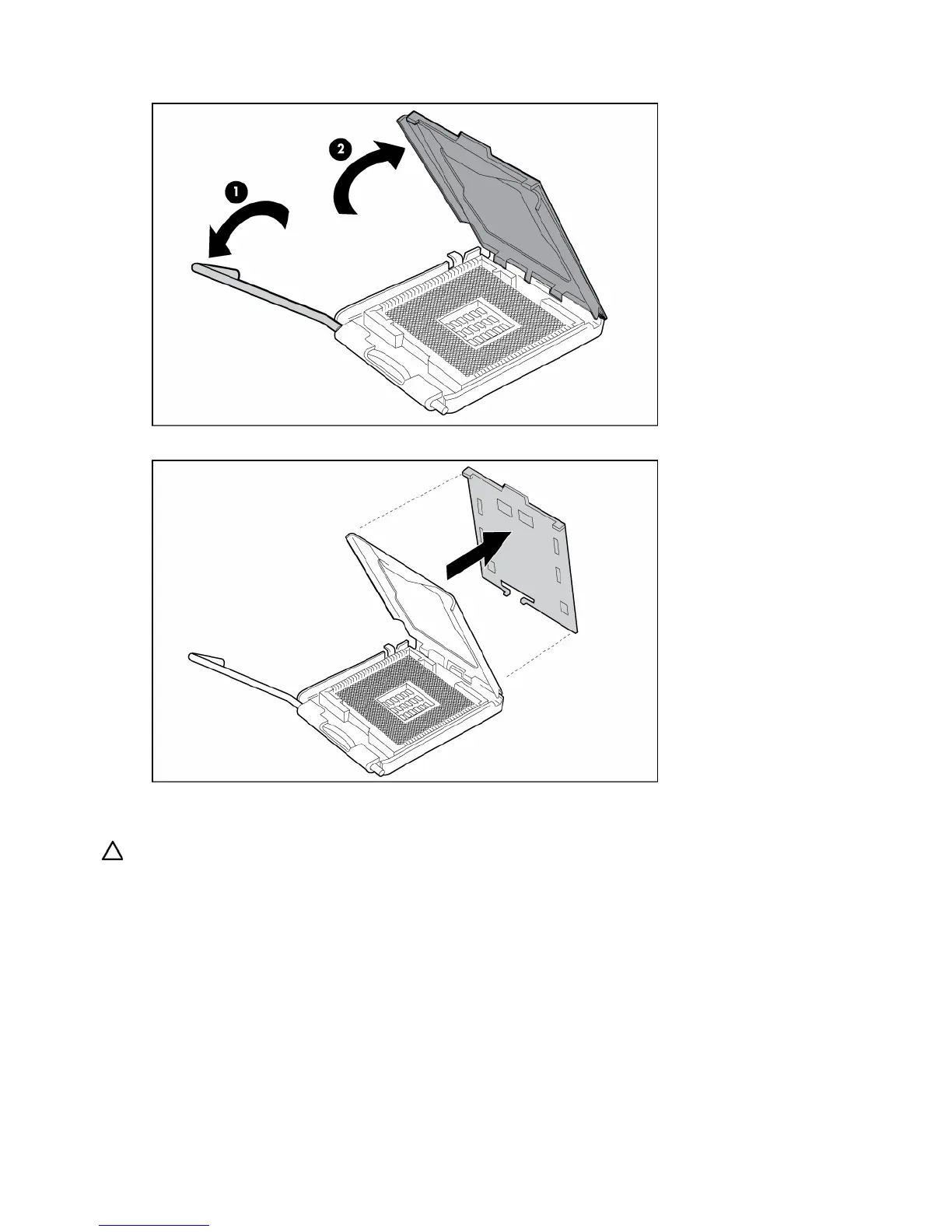

Open the processor retaining latch and the processor socket retaining bracket.
b. Remove the processor socket protective cover.
3. Install the processor socket cover onto the processor socket of the failed system board.
4. Install the processor on the spare system board.
CAUTION: The processor is designed to fit one way into the socket. Use the alignment guides on the
processor and socket to properly align the processor with the socket. Refer to the server hood label for
specific instructions.
