HP ProLiant ML310 Generation 4 - Component Identification; Front Panel Components

Component identification 57
Component identification
In this section
Front panel components .......................................................................................................................... 57
Front panel LEDs and buttons................................................................................................................... 58
Rear panel components........................................................................................................................... 59
Rear panel LEDs..................................................................................................................................... 60
System board components....................................................................................................................... 61
System board LEDs................................................................................................................................. 63
System LEDs and internal health LED combinations ..................................................................................... 64
SAS and SATA device numbers ............................................................................................................... 65
Hot-plug SATA or SAS hard drive LEDs ..................................................................................................... 65
Fan locations ......................................................................................................................................... 66

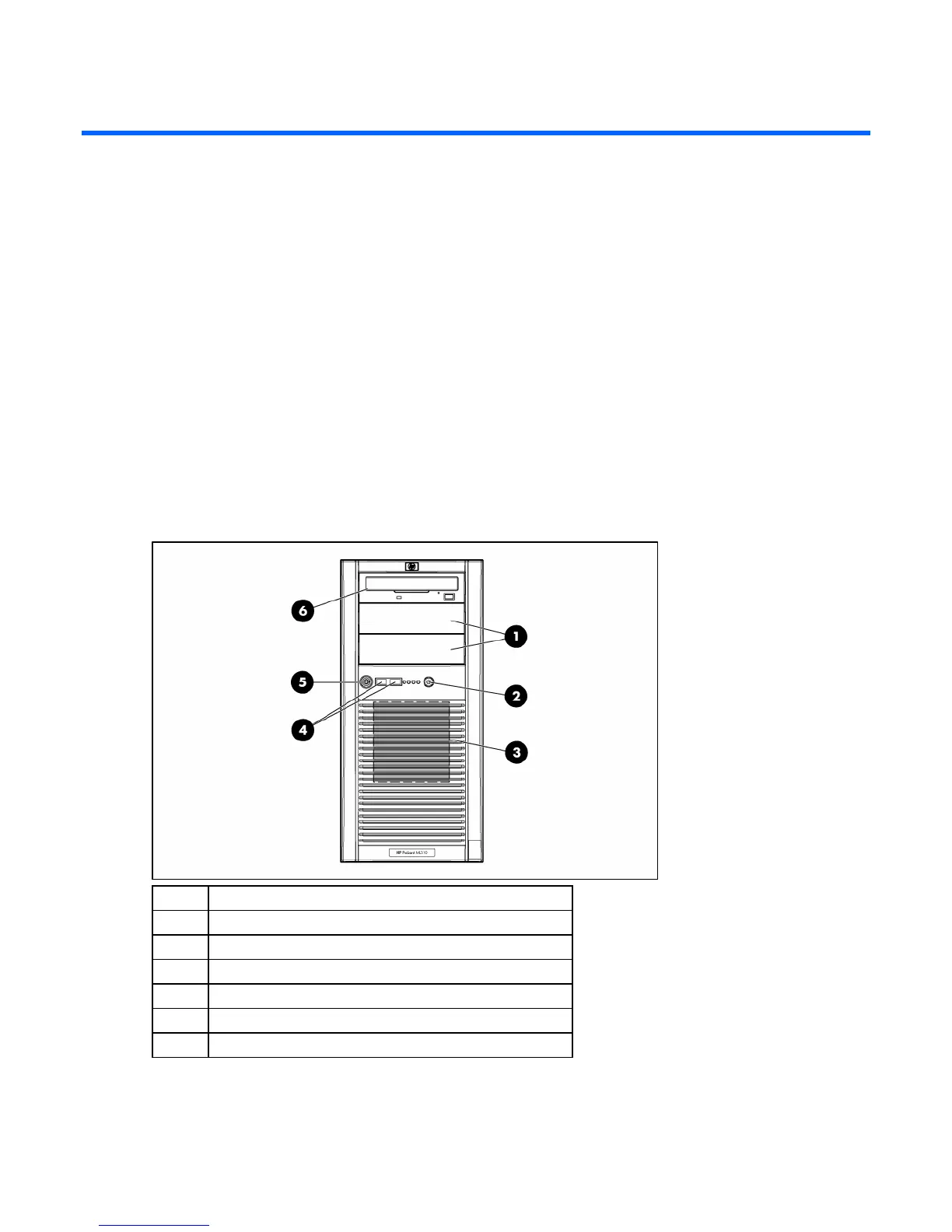

Front panel components
Item Description
1 Media bays (bezel blanks)
2 Power On/Standby button
3 Hard drive bays
4 USB connectors (2)
5 Bezel lock
6 CD-ROM drive
