Component identification 66
The online/activity status LED will not illuminate if using SATA drives connected to the embedded storage
device. In this configuration, SATA hard drive activity can be identified using the hard drive activity LED
on the system front panel.

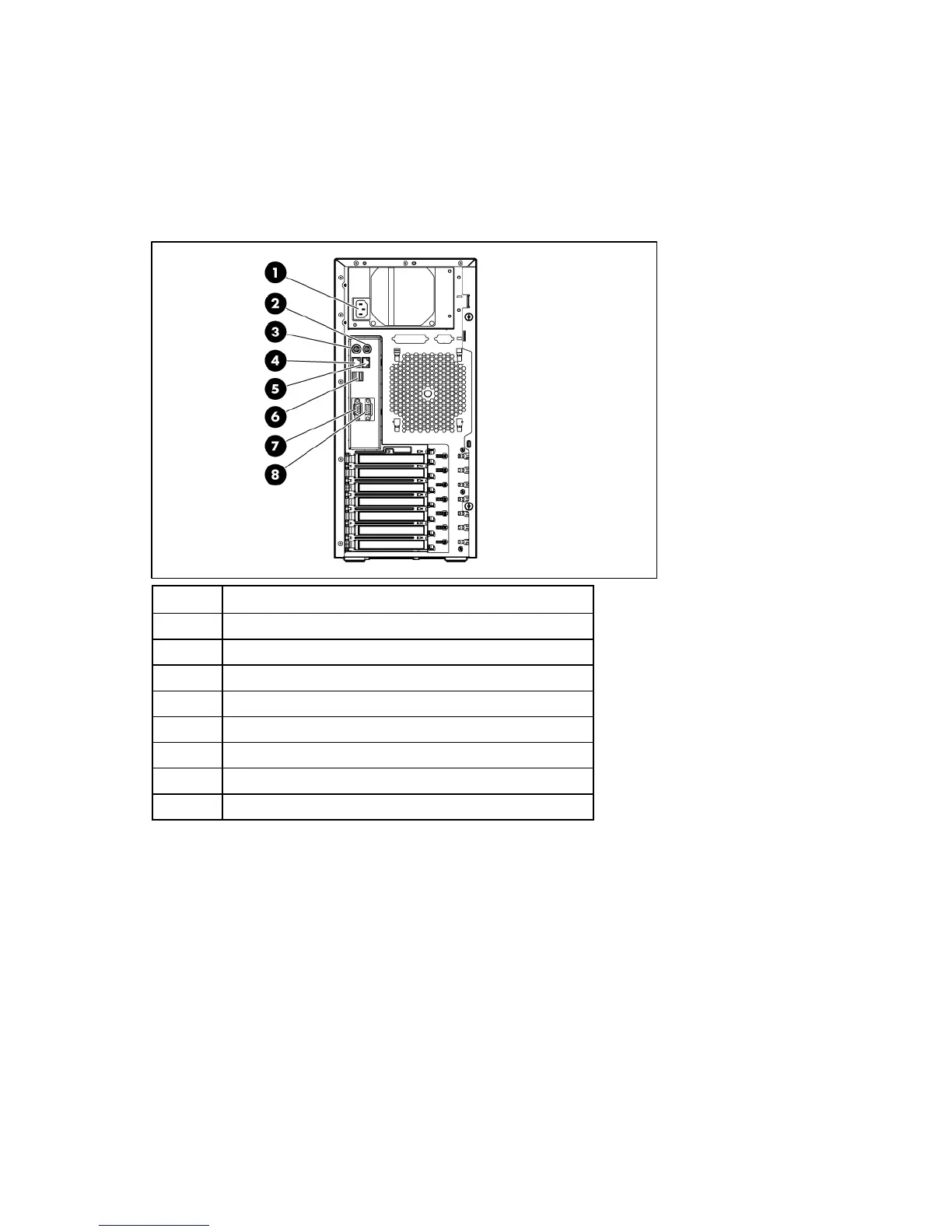

Rear panel components
The server may look different from that shown.
Item Description
1 Power supply connector
2 Mouse connector
3 K eyboard connector
4 10/100/1000 NIC 1 connector
5 iLO 2 management port
6 USB connectors (2)
7 V ideo connector
8 Seria l connector
