Component identification 71

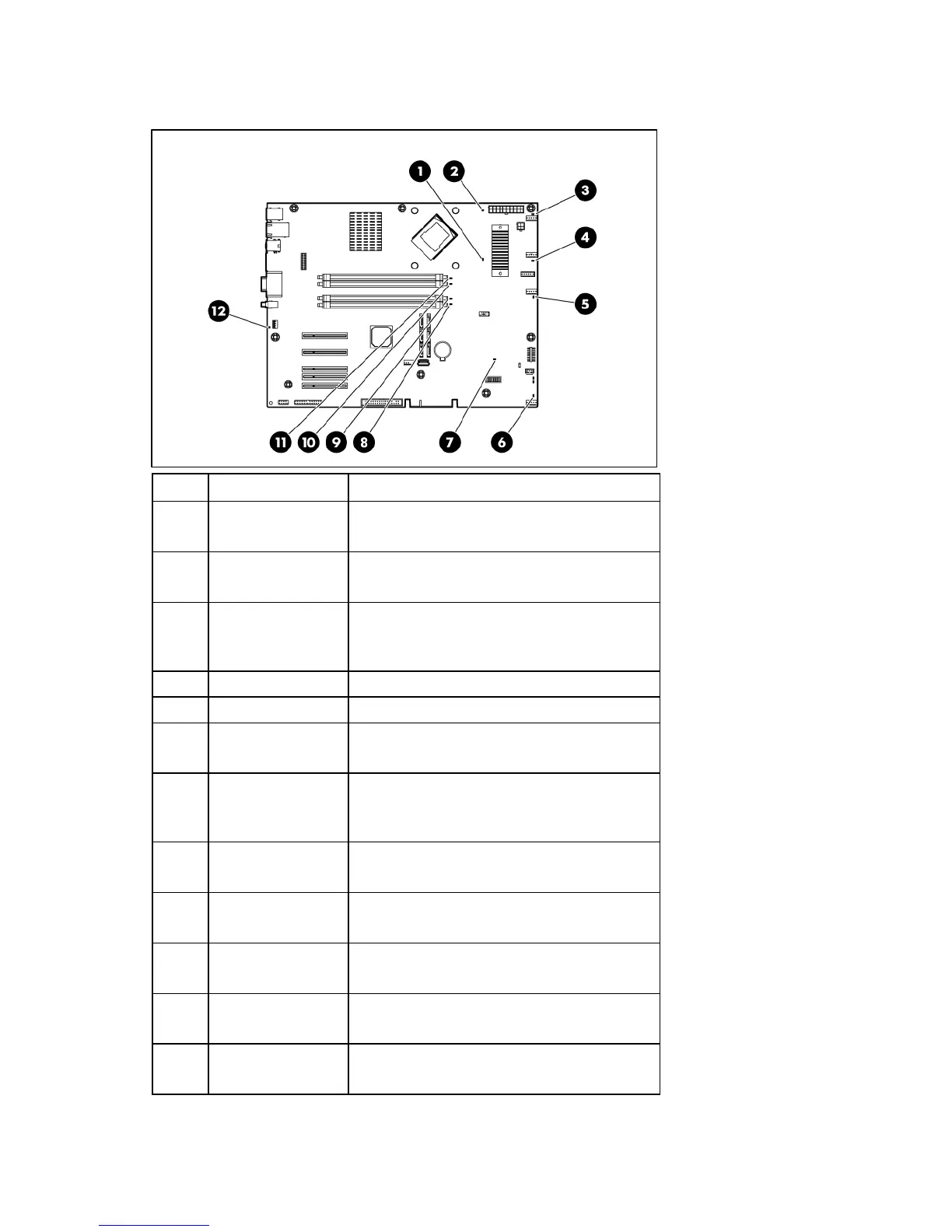

System board LEDs
Item LED description Status
1 Processor failure Amber = A multibit error has occurred.
Off = Normal
2 PPM failure Amber = PPM has failed.
Off = Normal
3 Processor heatsink
fan failure
Amber = Processor heatsink fan has failed or is
missing.
Off = Normal
4 Reserved —
5 Reserved —
6 PCI fan failure Amber = PCI fan has failed or is missing.
Off = Normal
7 Overtemperature Amber = System has reached a cautionary or
critical temperature level.
Off = Normal
8 DIMM 4 failure Amber = DIMM has failed or is missing.
Off = Normal
9 DIMM 3 failure Amber = DIMM has failed or is missing.
Off = Normal
10 DIMM 2 failure Amber = DIMM has failed or is missing.
Off = Normal
11 DIMM 1 failure Amber = DIMM has failed or is missing.
Off = Normal
12 Rear fan failure Amber = Rear fan has failed or is missing.
Off = Normal
