Component identification 6
Component identification
In this section
Front panel components ............................................................................................................................ 6
Front panel LEDs and buttons..................................................................................................................... 7
Rear panel components............................................................................................................................. 8
Rear panel LEDs....................................................................................................................................... 9
System board components....................................................................................................................... 10
System board LEDs................................................................................................................................. 12
System LEDs and internal health LED combinations ..................................................................................... 13
SAS and SATA device numbers ............................................................................................................... 14
Hot-plug SATA or SAS hard drive LEDs ..................................................................................................... 14
Fan locations ......................................................................................................................................... 15

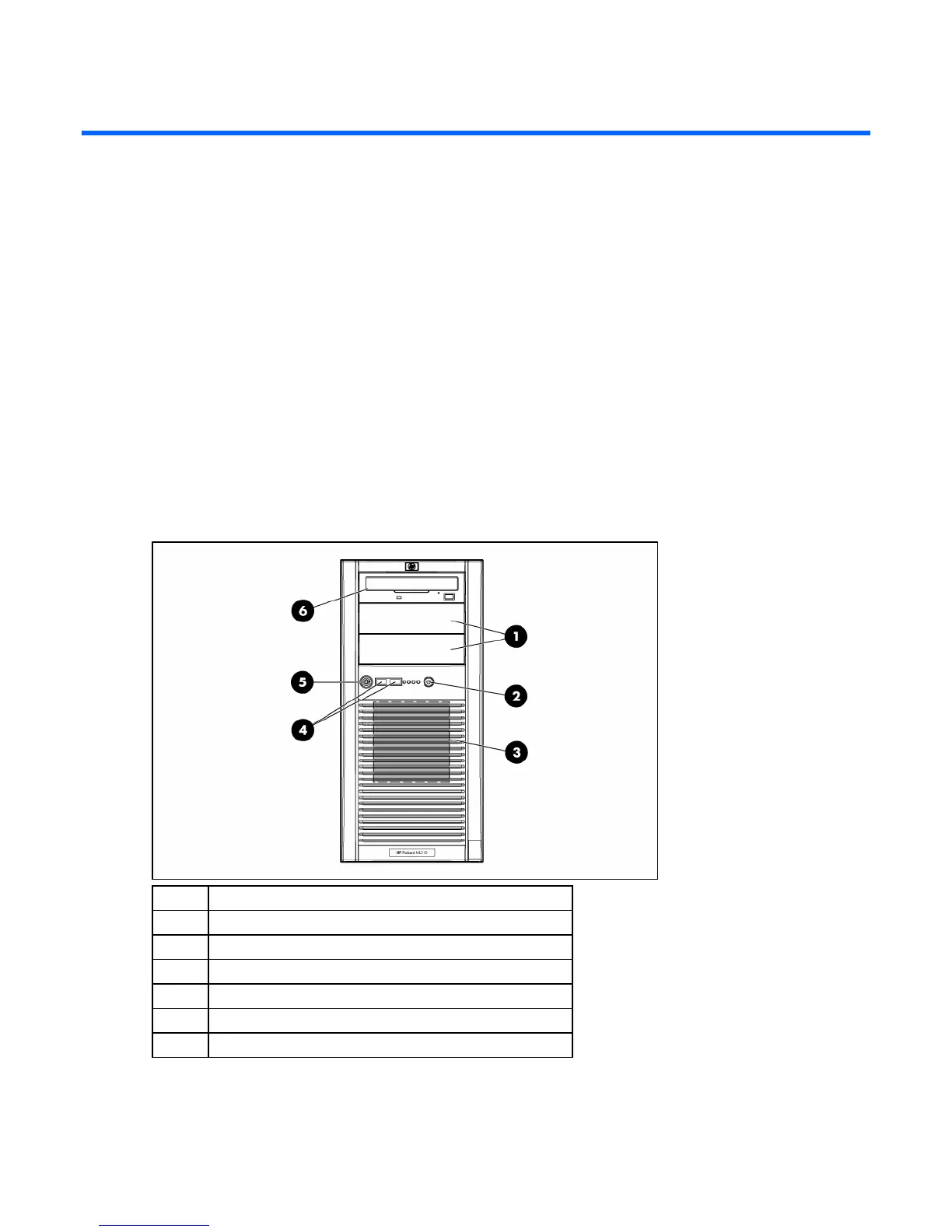

Front panel components
Item Description
1 Media bays (bezel blanks)
2 Power On/Standby button
3 Hard drive bays
4 USB connectors (2)
5 Bezel lock
6 CD-ROM drive
