12 Reference and Troubleshooting Guide

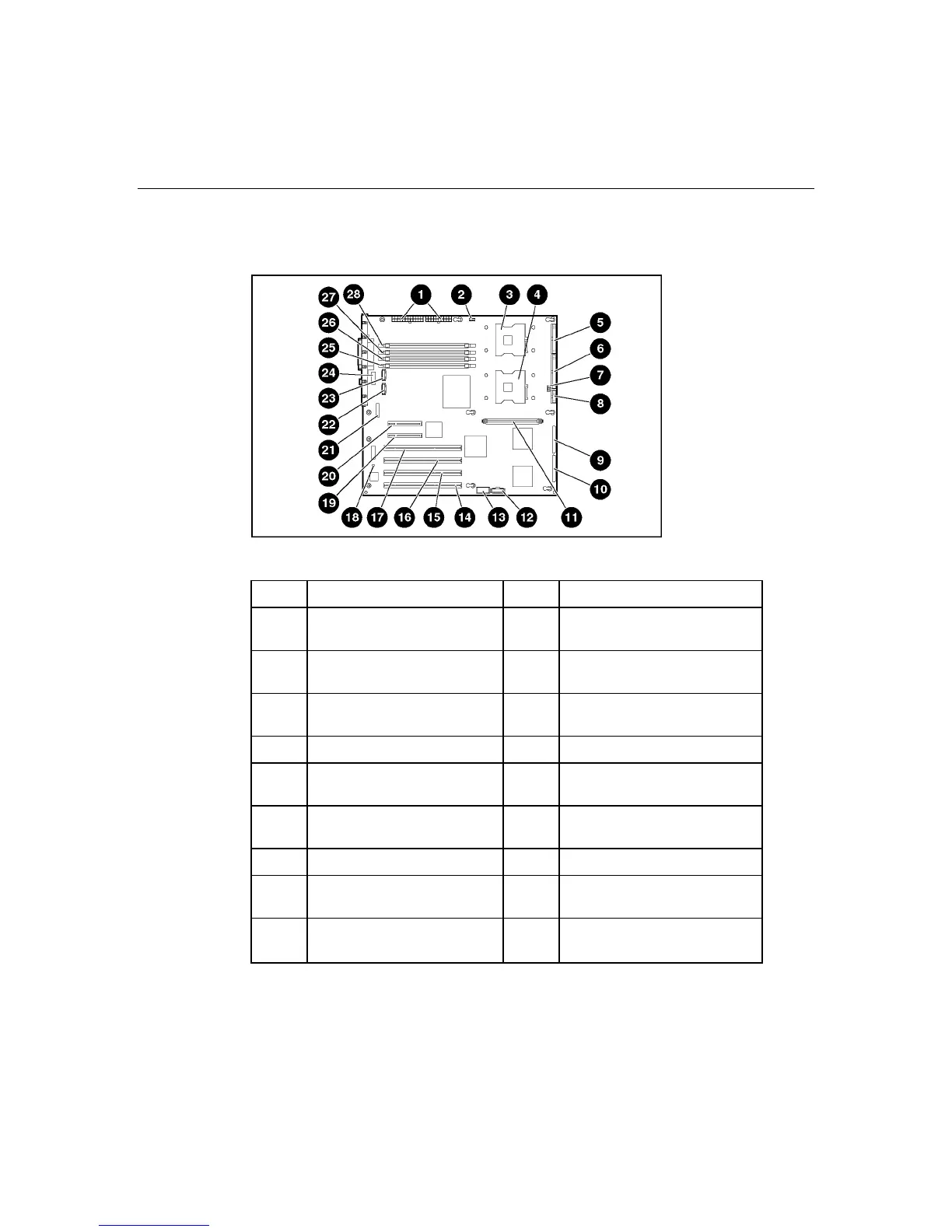

System Board Components

NOTE: PPM 1 is embedded onto the system board.

Item Description Item Description

1 Power supply connectors 15 64-bit 133-MHz PCI-X slot,

bus 6

2 CPU 1 heatsink header 16 64-bit 100-MHz PCI-X slot,

bus 9

3 Processor socket 1 17 64-bit 100-MHz PCI-X slot,

bus 9

4 Processor socket 2 18 NMI jumper

5 Diskette drive connector 19 PCI Express x8 slot (full

length card)

6 Primary IDE connector

(ATAPI devices)

20 PCI Express x4 slot (half

length card)

7 CPU 2 heatsink header 21 System battery

8 Power button/LED

connector

22 Redundant fan header

9 Primary SCSI connector* 23 Rear fan connector

Other manuals for HP ProLiant ML350 Generation 4

Questions and Answers:

Need help?

Do you have a question about the HP ProLiant ML350 Generation 4 and is the answer not in the manual?

General

Processor Socket	Socket 604
Chipset	Intel E7520
Form Factor	Tower
Processor	Intel Xeon
Number of CPUs Supported	2
Memory	Up to 12 GB DDR2 SDRAM
Storage	SAS or SATA HDDs
RAID Support	RAID 0, 1, 5
Expansion Slots	6 PCI slots
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
