Removal and replacement procedures 36
6.

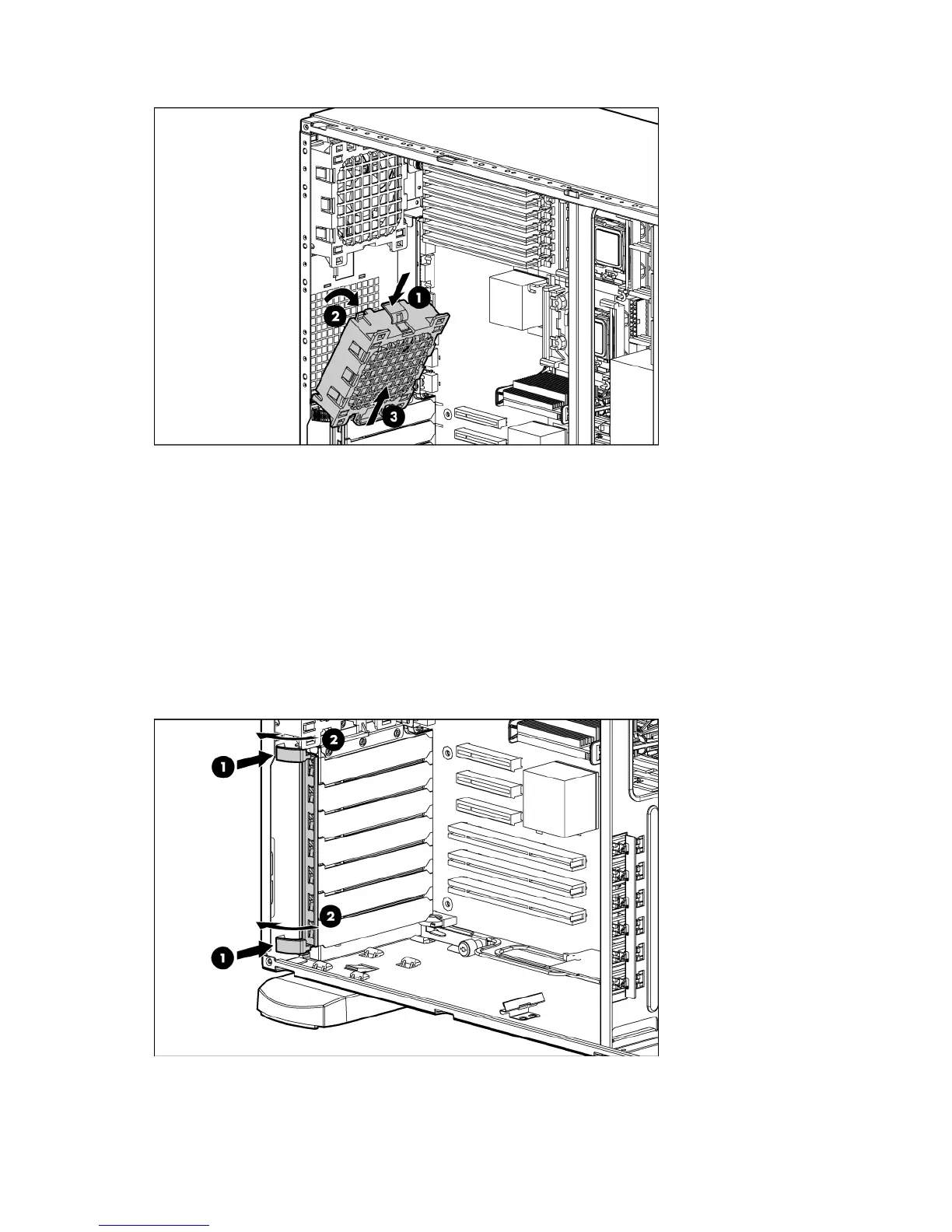

Remove the fan.
To replace the component, reverse the removal procedure.
Expansion slot cover
To remove the component:
1. Do one of the following:
o Unlock and remove the bezel ("Front bezel" on page 27).
o Extend the server from the rack (on page 26).
2. Remove the access panel ("Access panel" on page 29).
3. Push the release latches on the expansion board retainer and open the retainer.
