Removal and replacement procedures 35
Air baffle
To remove the component:
1. Power down the server (on page 26).
2. Do one of the following:
o Unlock and remove the bezel ("Front bezel" on page 27).
o Extend the server from the rack (on page 26).
3. Remove the access panel ("Access panel" on page 29).

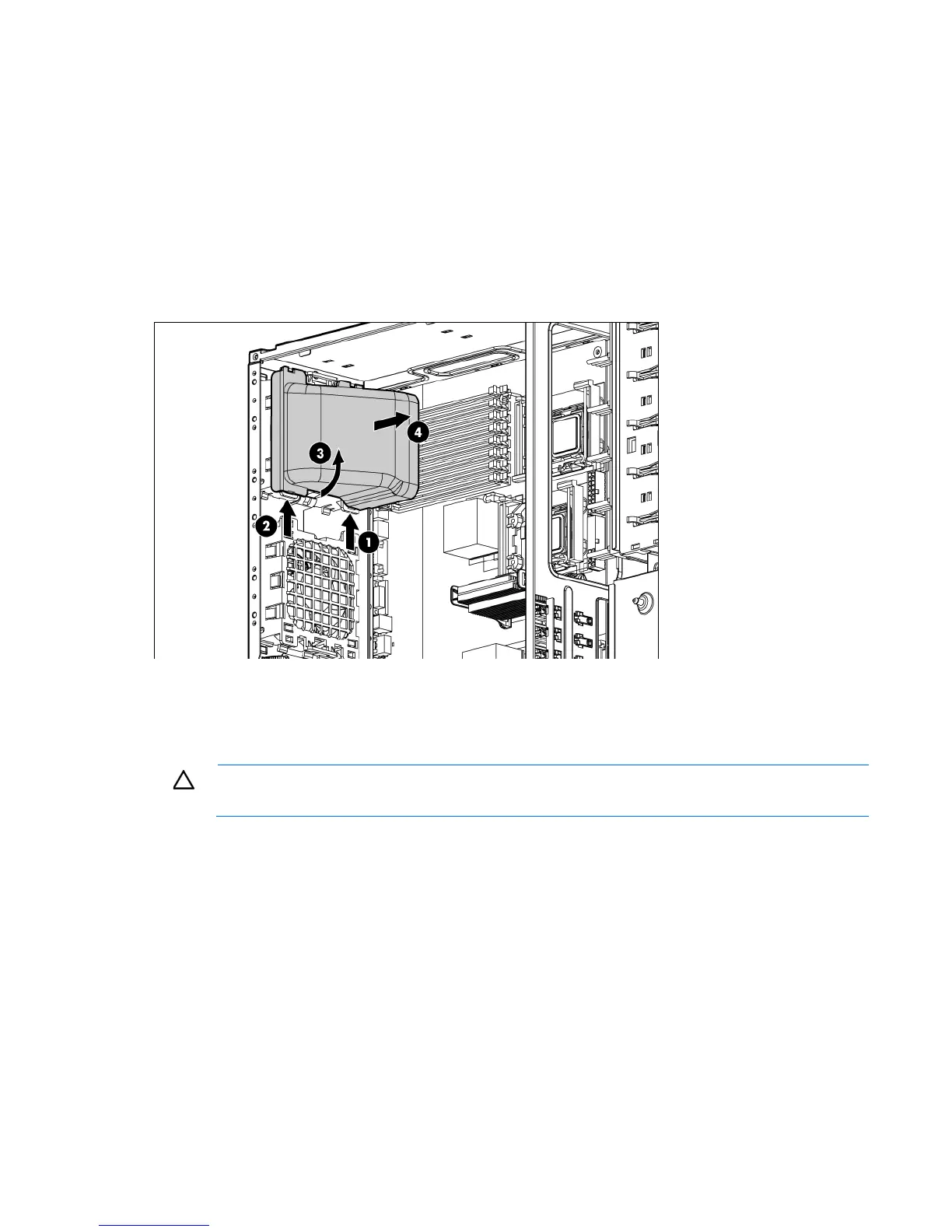

4. Remove the air baffle.
To replace the component, reverse the removal procedure.
System fans
CAUTION: The system fan is a non-hot-pluggable device.
Fan failures are indicated by amber LEDs located on each hot-plug fan and by the front panel internal health
LED. When a fan failure occurs, the internal health LED illuminates red in non-redundant mode and amber in
redundant mode.
To remove the component:
1. Power down the server (on page 26).
2. Do one of the following:
o Unlock and remove the bezel ("Front bezel" on page 27).
o Extend the server from the rack (on page 26).
3. Remove the access panel ("Access panel" on page 29).
4. Remove the air baffle ("Air baffle" on page 35).
5. Disconnect the system fan cable from the system board.
