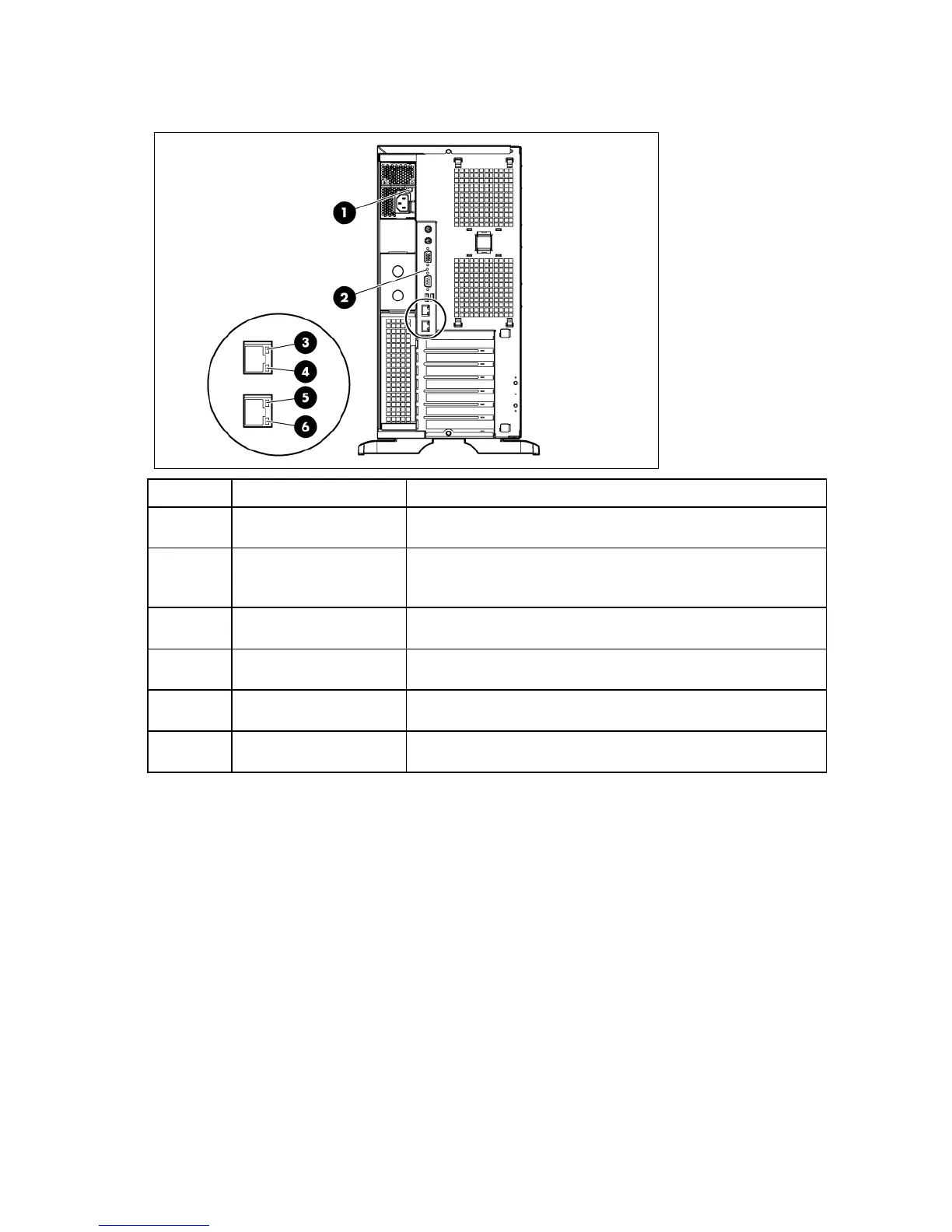

Rear panel LEDs and buttons
Item Description Status
1
Power supply LED Green = Power supply is on and functioning
Off = No power or inadequate power supply
2
UID LED and button Blue = Activated
Flashing blue = Remote inquiry
Off = Deactivated
3
iLO 2 activity LED Green or flashing = Network activity
Off = No network activity
4
iLO 2 link LED Green = Linked to network
Off = Not linked to network
5
10/100/1000 NIC
activity LED
Green or flashing = Network activity
Off = No network activity
6
10/100/1000 NIC link
LED
Green = Linked to network
Off = Not linked to network
