HP ProLiant ML350 Generation 5 - System Board Layout and LEDs

Component identification 74

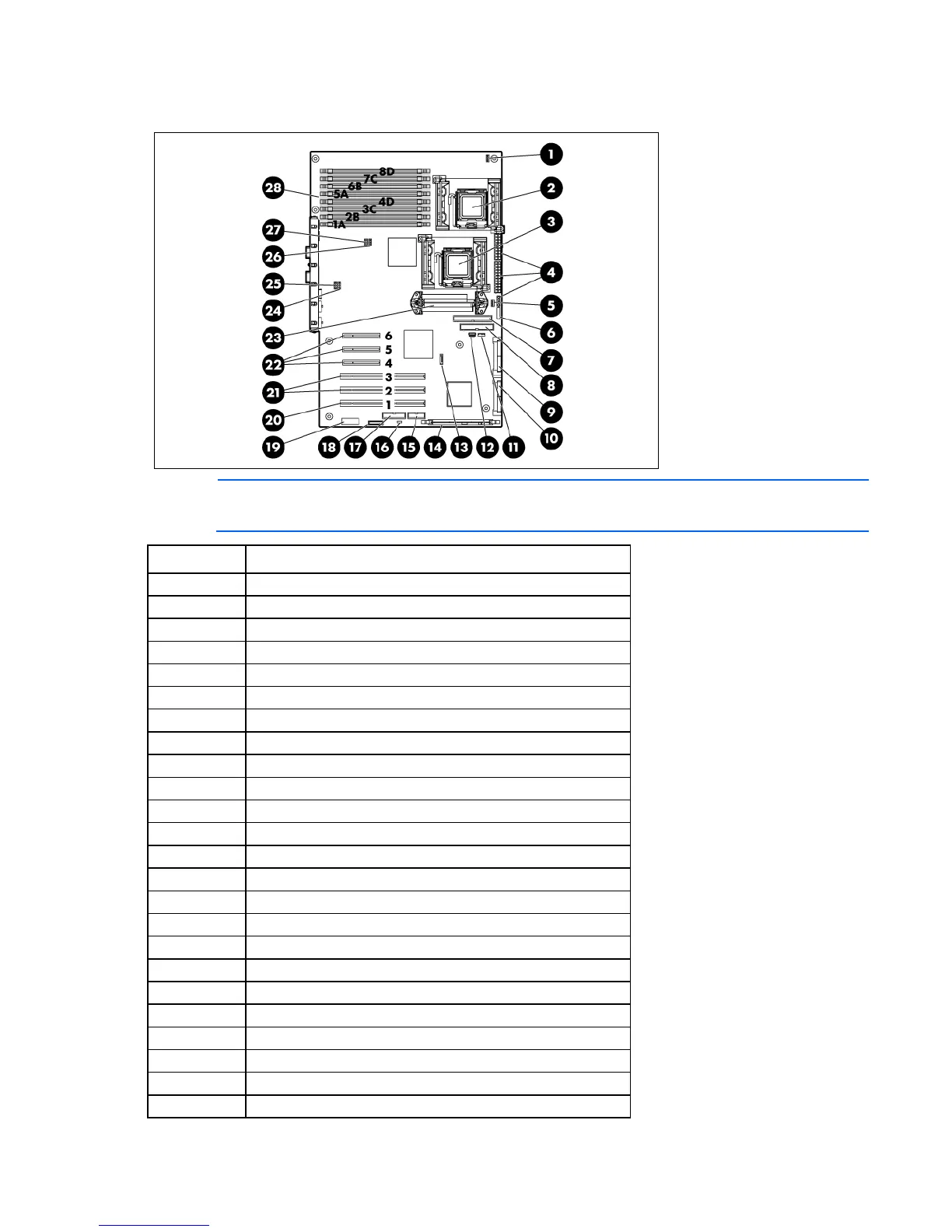

System board components
NOTE: PPM 1 is embedded in the system board.
Item Description
1
Processor 1 heatsink fan connector
2
Processor socket 1
3
Processor socket 2
4
Power supply connectors
5
Processor 2 heatsink fan connector
6
Power button/LED connector
7
PATA connector
8
Diskette drive connector
9
SAS/SATA connector (drives 1-4)
10
SAS/SATA connector (drives 5-8)
11
USB tape drive connector
12
Internal USB connector
13
SATA optical connector (select models only)
14
HP Smart Array E200i memory connector
15
Optional serial port connector
16
NMI jumper
17
Optional parallel port connector
18
System battery
19
System maintenance switch
20
PCI-X slot 1 (133-MHz)
21
PCI-X slots 2-3 (100-MHz)
22
PCI Express x8 slots 4-6 (x4 routed)
23
PPM 2 slot
24
Optional redundant system fan 4 connector
