Removal and replacement procedures 59
o
Unlock and remove the bezel ("Front bezel" on page 30).
o Extend the server from the rack (on page 29).
3. Remove the access panel ("Access panel" on page 31).
4. Remove all expansion boards ("Expansion board" on page 41).
5. Remove the processor air baffle ("Processor air baffle" on page 43).
6. Remove the center wall ("Center wall" on page 44).
7. Remove the memory board ("Memory board" on page 48).
8. Disconnect the cable from the internal video connector on the system board.

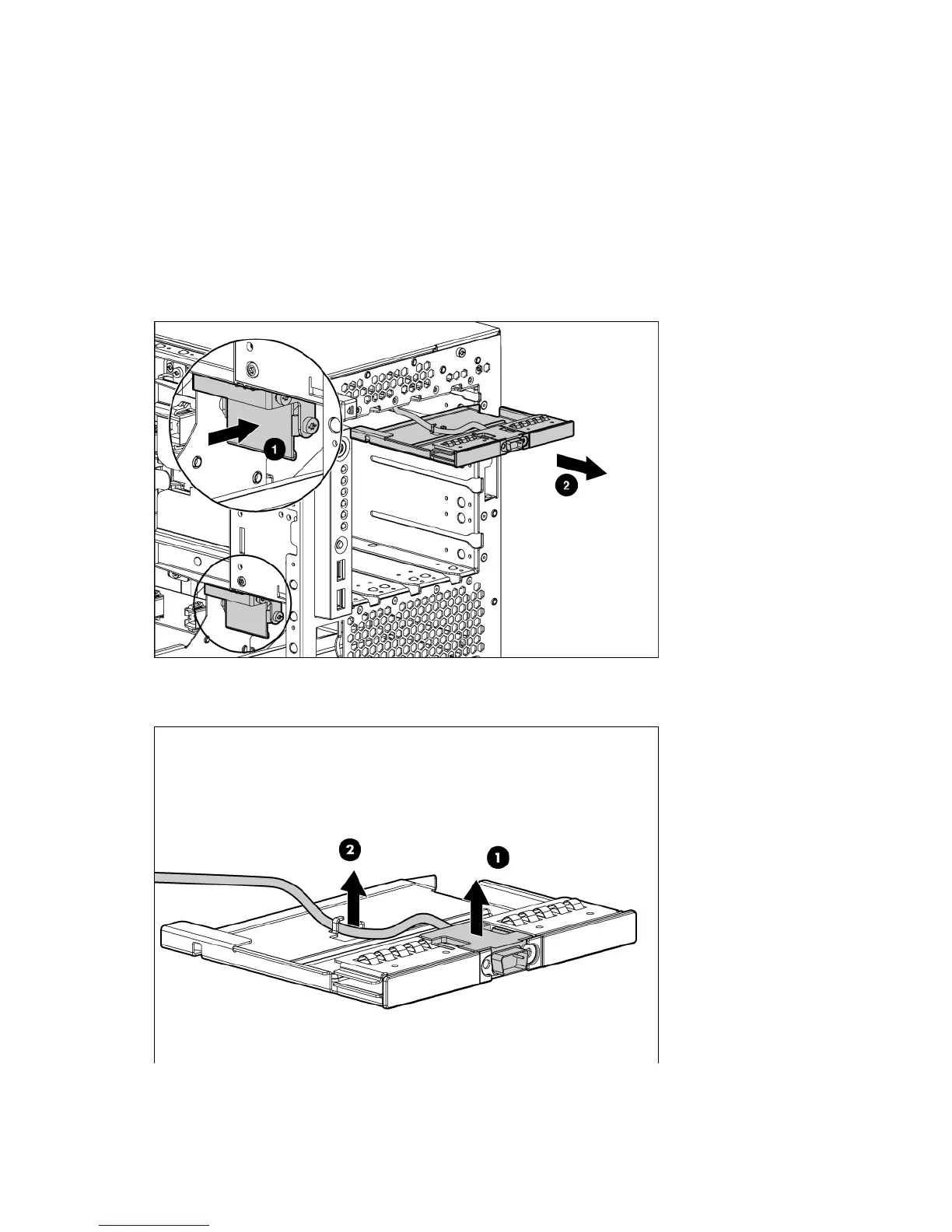

9. Extend or remove the media bay spacer from the chassis.
10. Remove the video connector.
11. Remove the cable from the clip on the media bay spacer.
To replace the component, reverse the removal procedure.
