HP ProLiant ML370 Generation 5 - Rear Panel Components

Server component identification 80
Item Description Status
1
UID button —
2
UID LED
Blue = Activated
Flashing blue = System is being managed remotely
Off = Deactivated
3
Internal system health LED
Green = Normal (system on)
Amber = System health is degraded
Red = System health is critical
Off = Normal (system off)
4
External system health LED
(power supply)
Green = Normal (system on)
Amber = Redundant power supply failure
Red = Power supply failure. No operational power supplies.
Off = Normal (system off)
5
NIC 1 link/activity LED
(embedded NIC)
Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
6
NIC 2 link/activity LED
(embedded NIC)
Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
7
System power LED Green = System has AC power and is powered up
Amber = System has AC power and is in standby mode
Off = System has no AC power
8
Power On/Standby button —

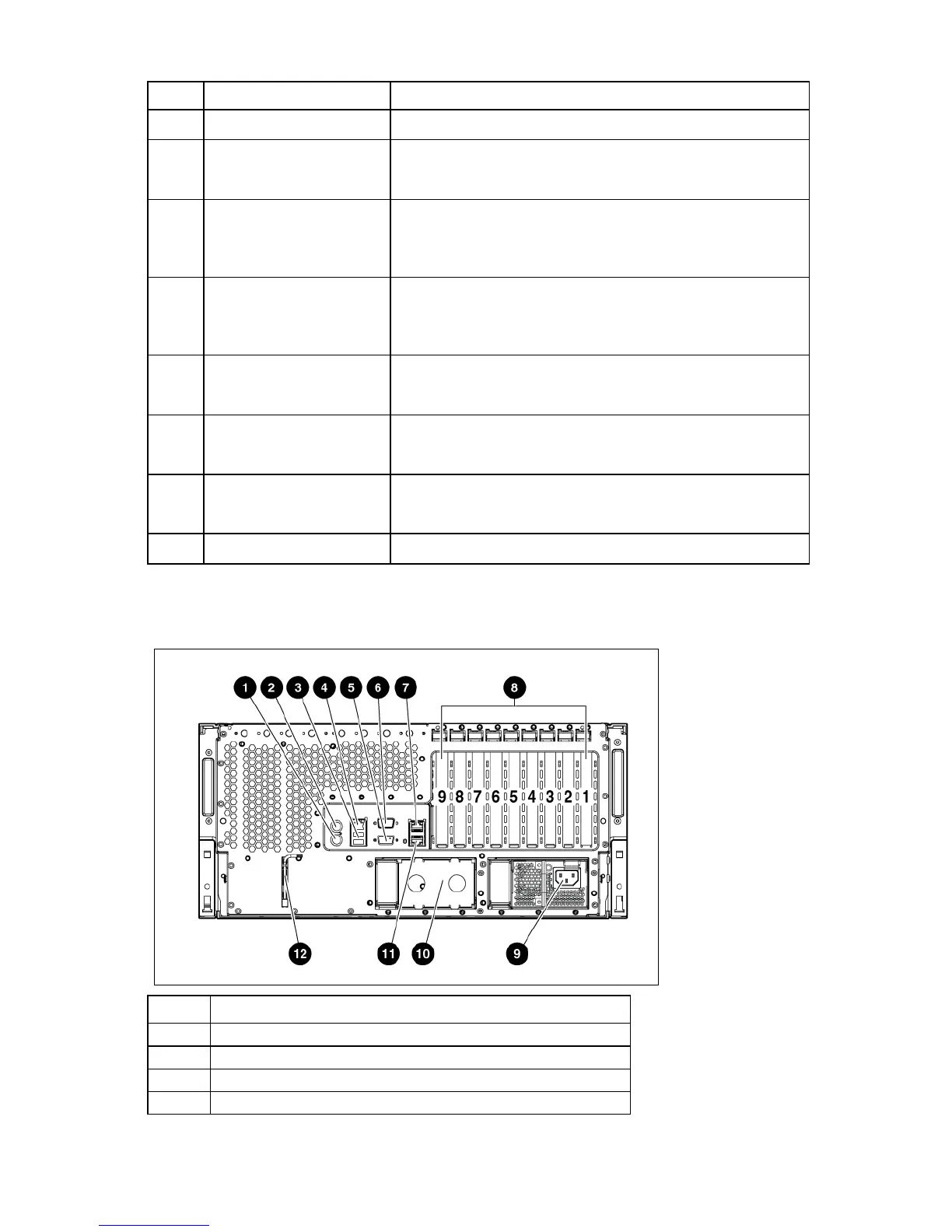

Rear panel components
Item Description
1
Keyboard connector
2
Mouse connector
3
USB connectors
4
iLO 2 management connector
