HP ProLiant ML370 Generation 5 - Page 81

Server component identification 81
Item Description
5
Video connector
6
Serial connector
7
NIC 2 connector
8
PCI expansion slots
9
Hot-plug power supply (primary bay)
10
Hot-plug power supply blank (redundant bay)
11
NIC 1 connector
12
T-10/T-15 Torx screwdriver

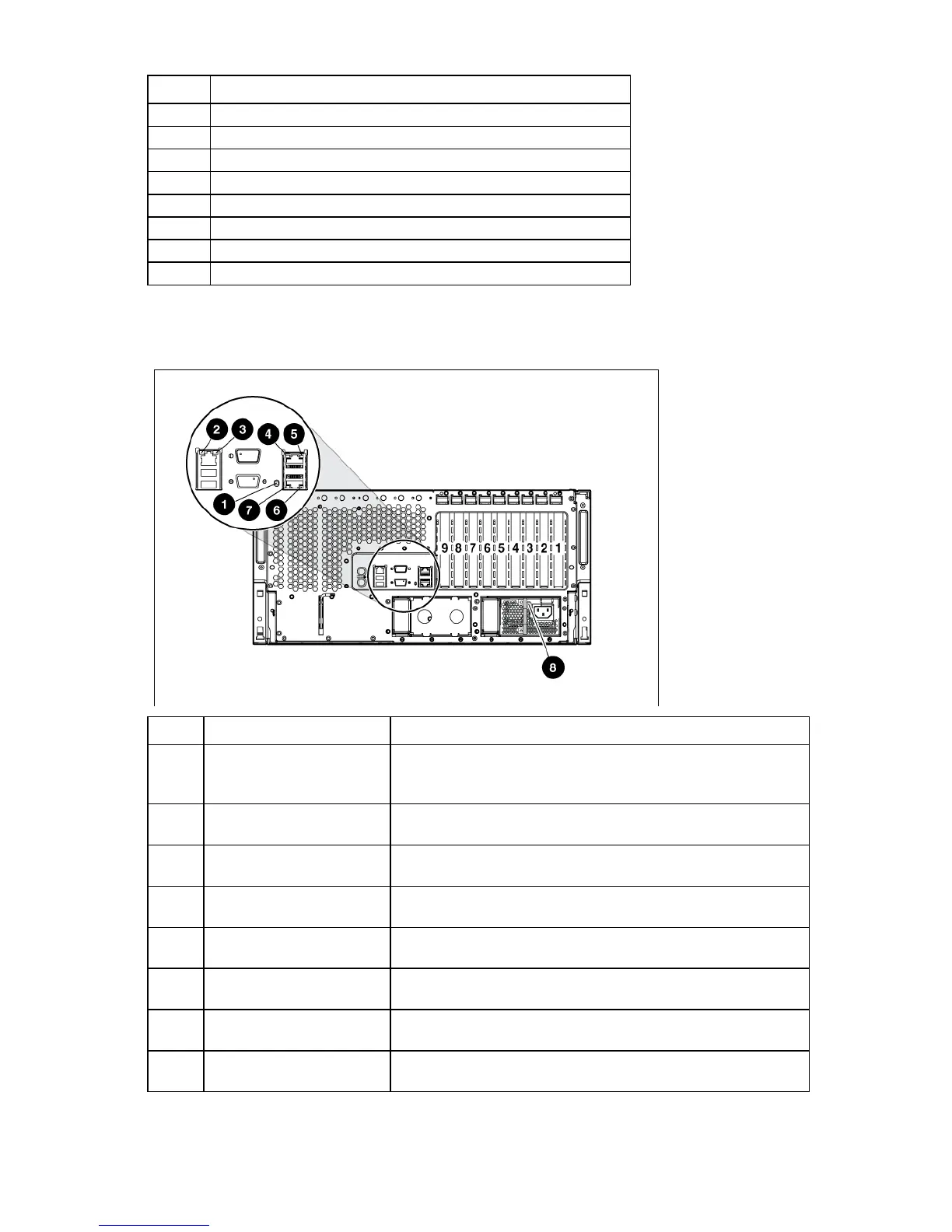

Rear panel LEDs
Item Description Status
1
UID LED Blue = Activated
Flashing blue = system is being remotely managed
Off = Deactivated
2
iLO 2 activity LED Green or flashing green = Network activity
Off = No network activity
3
iLO 2 link LED Green = Linked to network
Off = No network connection
4
NIC 2 activity LED Green or flashing green = Network activity
Off = No network activity
5
NIC 2 link LED Green = Linked to network
Off = No network connection
6
NIC 1 link LED Green = Linked to network
Off = No network connection
7
NIC 1 activity LED Green or flashing green = Network activity
Off = No network activity
8
Power supply LED Green = System has AC power and is powered up
Off = System has no AC power
