HP ProLiant ML370 Generation 5 - System Board Components

Server component identification 82

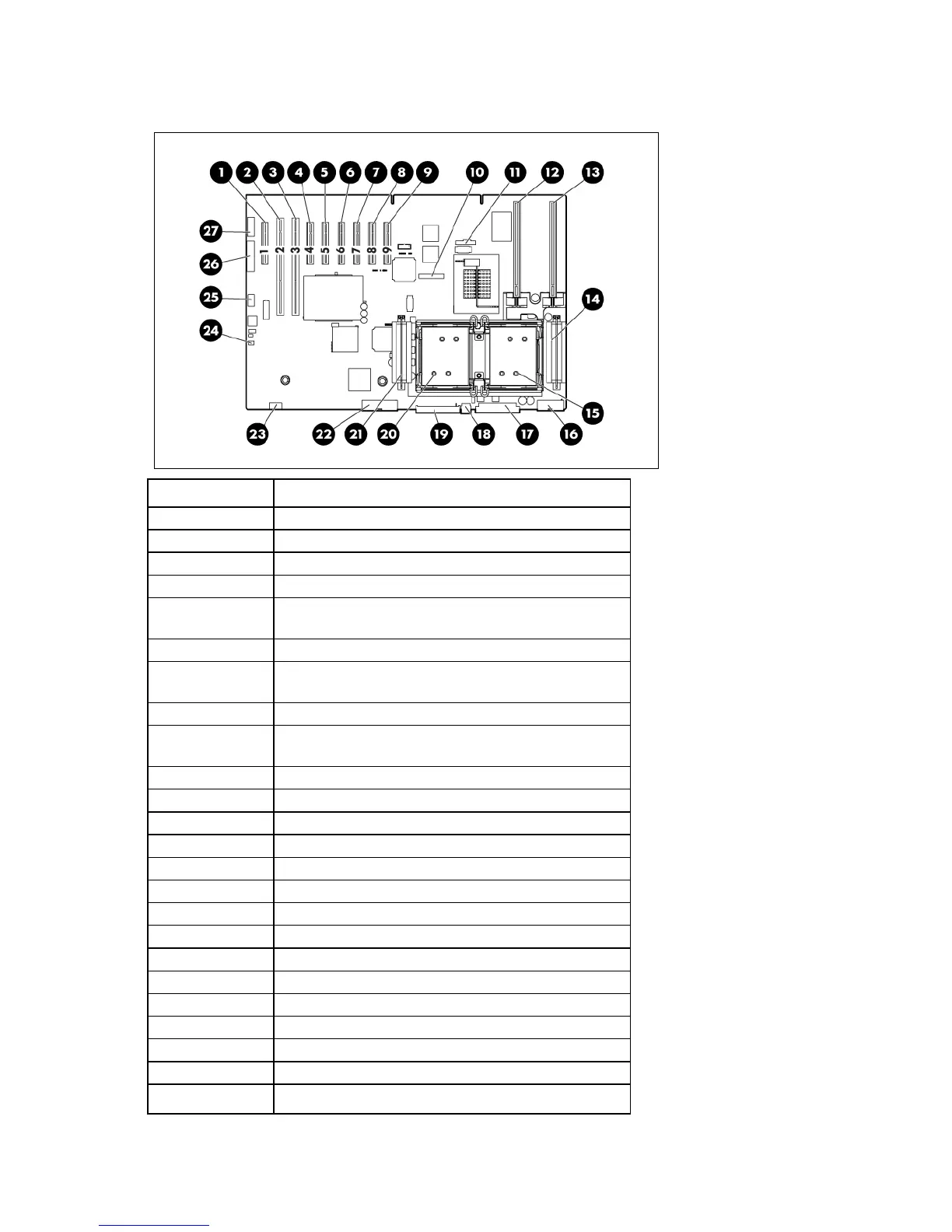

System board components
Item Description
1
PCI Express slot 1, x4
2
PCI-X slot 2, 64-bit/133-MHz
3
PCI-X slot 3, 64-bit/133-MHz
4
PCI Express slot 4, x4
5
PCI Express slot 5, x4 (optional x8 when PCIe Bus
Expander is installed in slot 4)
6
PCI Express slot 6, x4
7
PCI Express slot 7, x4 (optional x8 when PCIe Bus
Expander is installed in slot 6)
8
PCI Express slot 8, x4
9
PCI Express slot 9, x4 (optional x8 when PCIe Bus
Expander is installed in slot 8)
10
System maintenance switch (SW1)
11
System battery
12
Memory board connector 1
13
Memory board connector 2
14
PPM 1
15
Processor 1
16
Power connector
17
Fan control/HP Systems Insight Display connector
18
USB tape drive connector
19
IDE connector
20
Processor 2
21
PPM 2
22
Power connector
23
Front video connector
24
Internal USB connector
