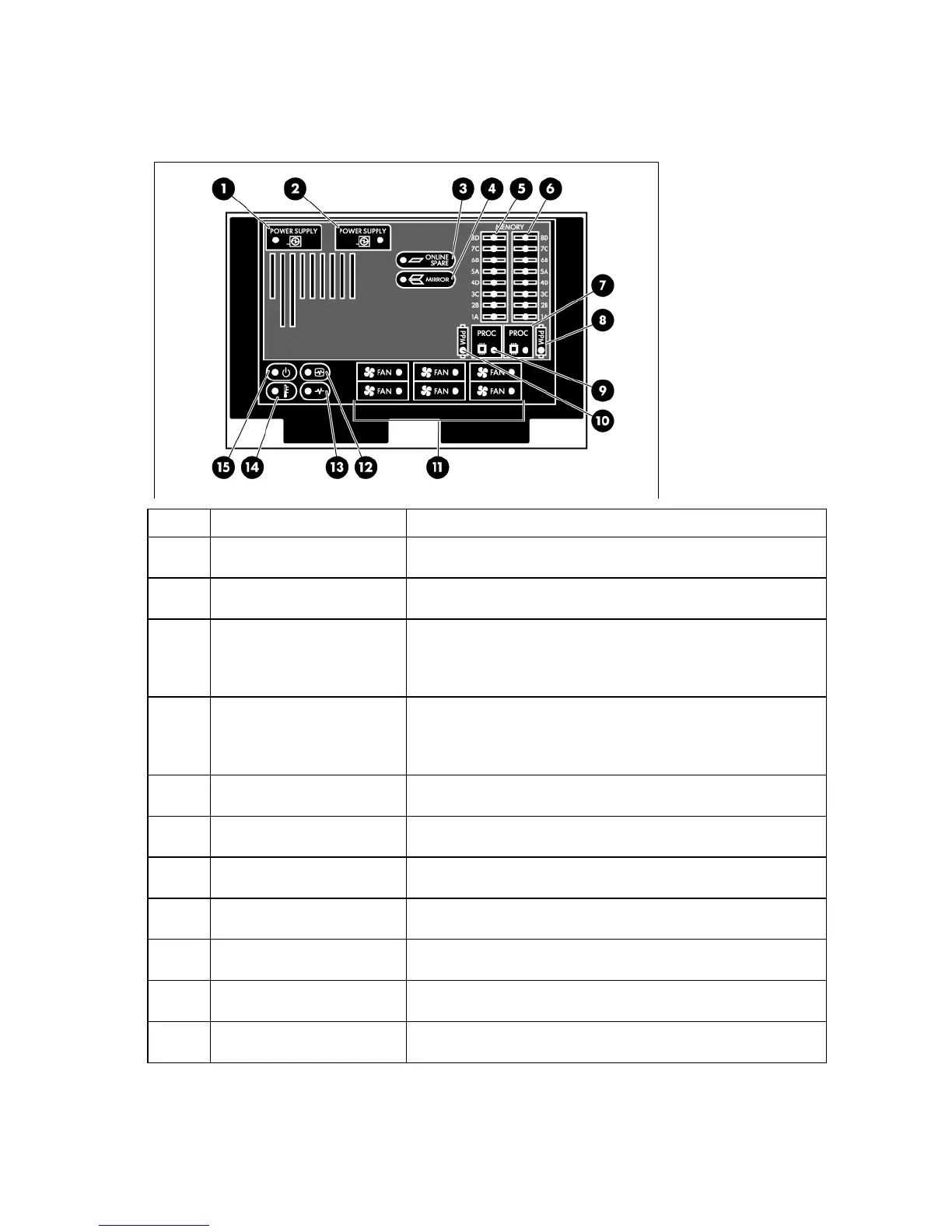

Systems Insight Display LEDs
To view a quick reference for component identification and status, access the Systems Insight Display.
Item Description Status
1
Primary power supply LED Amber = Failure
Off = Normal
2
Redundant power supply LED Amber = Failure
Off = Normal
3
Online spare memory LED Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration error
Off = No protection
4
Mirrored memory LED Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration error
Off = No protection
5
FBDIMM LEDs*
(memory board 1)
Amber = Failure
Off = Normal
6
FBDIMM LEDs*
(memory board 2)
Amber = Failure
Off = Normal
7
Processor 1 LED Amber = Failure
Off = Normal
8
PPM 1 LED Amber = Failure
Off = Normal
9
Processor 2 LED Amber = Failure
Off = Normal
10
PPM 2 LED Amber = Failure
Off = Normal
11
Hot-plug fan LEDs Amber = Failure or fan is not installed
Off = Normal
