Step 2: Connect the ADF 1-5
....................................................................................................................................................................................................................................
4
Store the cover on a flat, smooth surface in a safe
place. You will not need the scanner cover as long as
the ADF is installed.
5
Hold the ADF with the mounting posts perpendicular
to the scanner.
6
Align the mounting posts with the slots at the rear of
the scanner body. Ensure both posts are in the same
position.
7
Lower the ADF until the mounting posts are seated
firmly in the scanner.

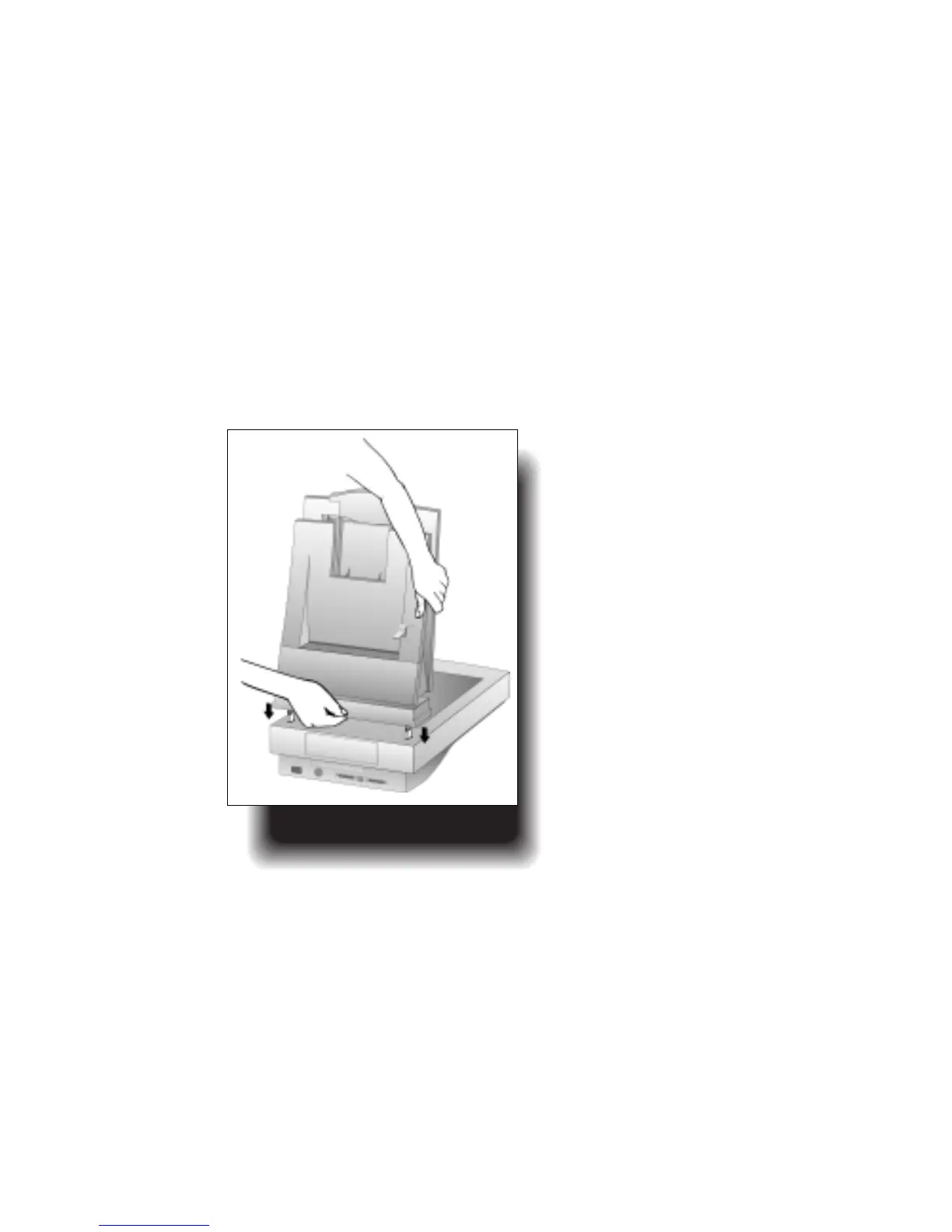

Inserting the ADF
mounting posts
To Next Page
