HP Slim Desktop S01

EL-MF877-00 Page 3
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

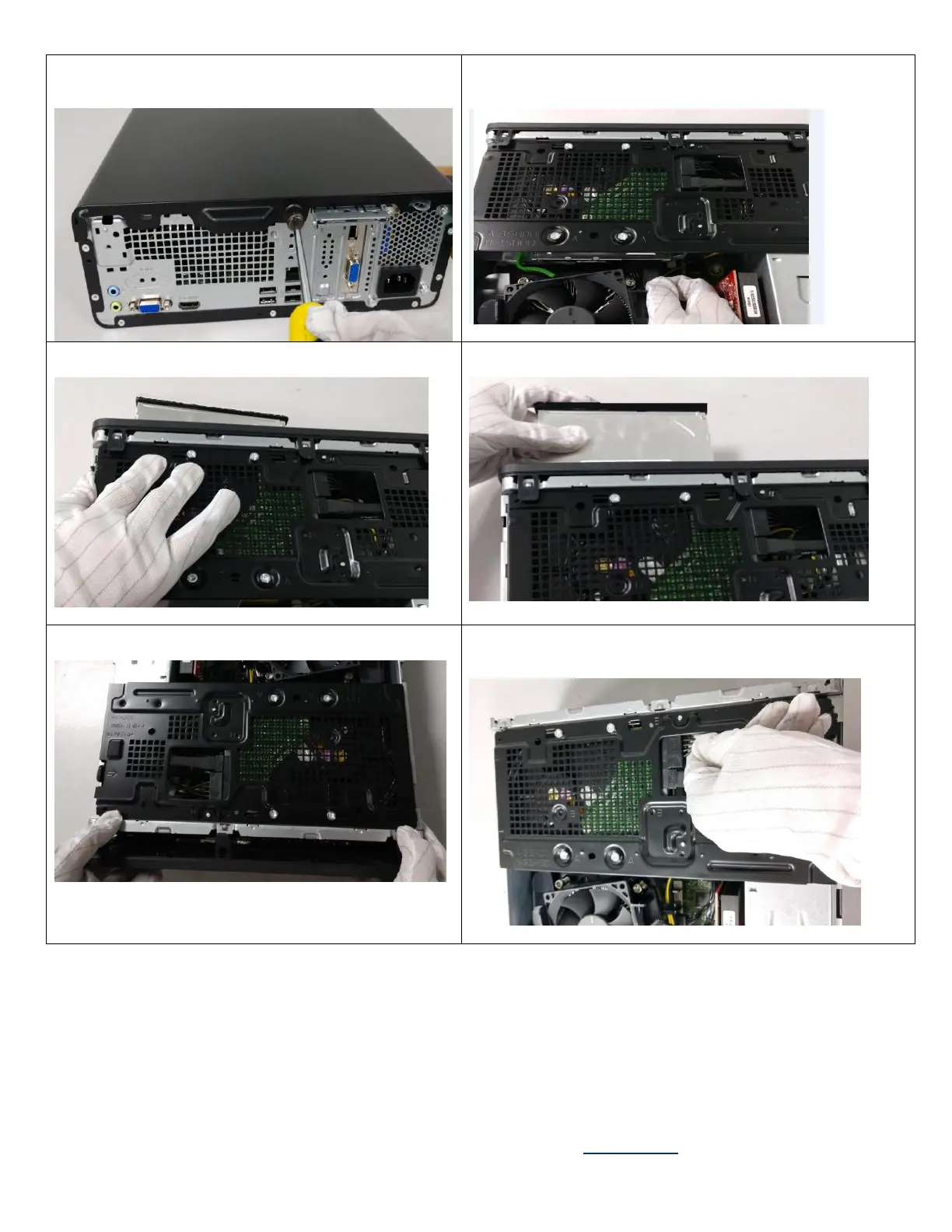

Step1 Use T-15 screwdriver to Loose thumb screw and
remove access panel.
Step2 Disconnect ODD power cable and
ODD SATA cable from ODD.
Step3 Press the ODD’s latch on ODD cage
Step4 Remove the ODD from ODD cage
Step5 Remove front bezel from chassis
Step6 Disconnect HDD power cable and
HDD SATA cable from HDD.
