HP Slim Desktop S01

EL-MF877-00 Page 4
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

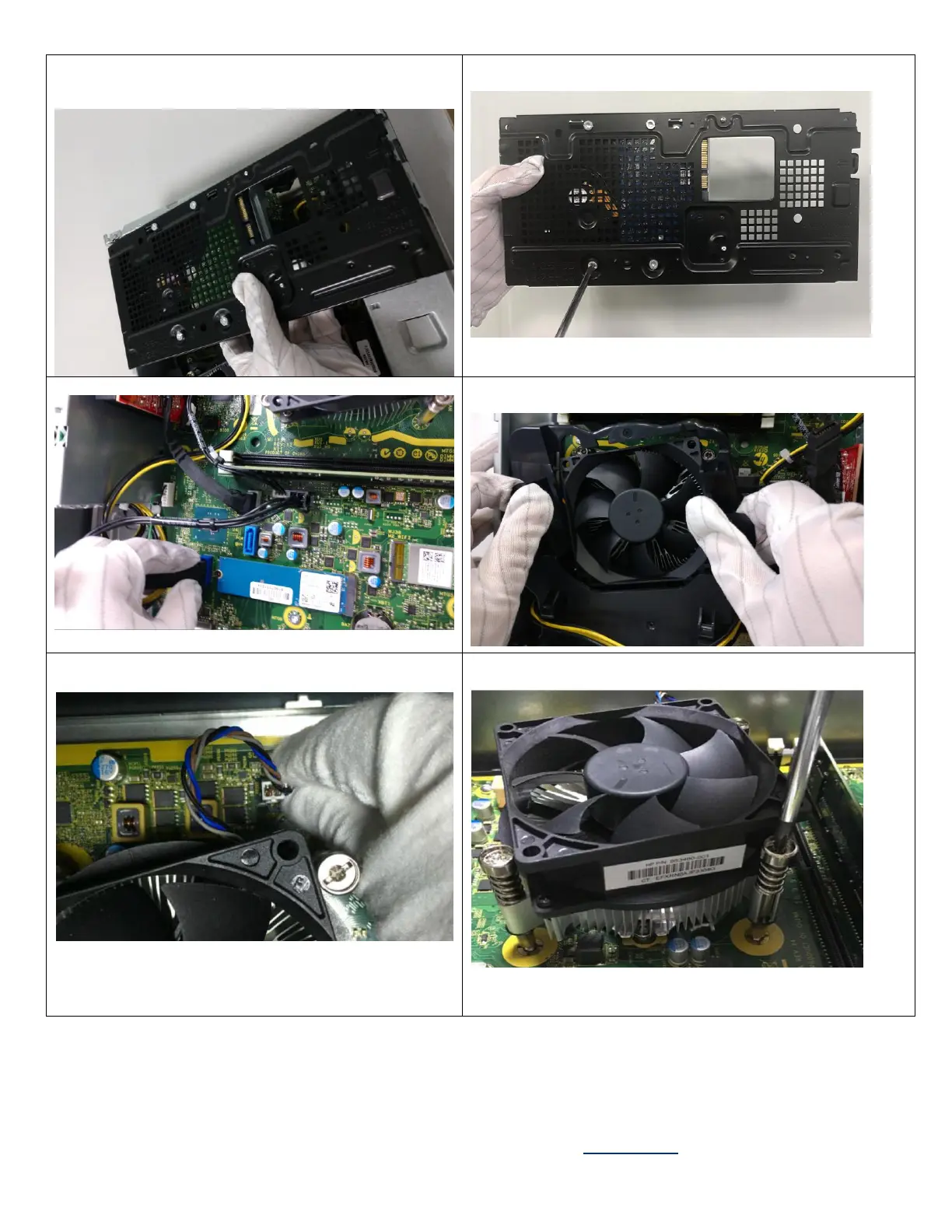

Step7 Remove the driver cage from Chassis
Step8 Use T-15 screwdriver to loose the screws of HDD and
remove HDD from HDD cage
Step9 Disconnect all cables from MB
Step10 Remove the Fan duct from cooler
Step11 Disconnect Cooler Fan cable from MB
Step12 Disconnect Cooler Fan cable from MB
