HP Slim Desktop S01 - Step 11: Loosen Fan Screws; Step 12: Separate Fan from Heatsink; Step 13: Remove Memory Module; Step 14: Open CPU Retention

EL-MF877-00 Page 5
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

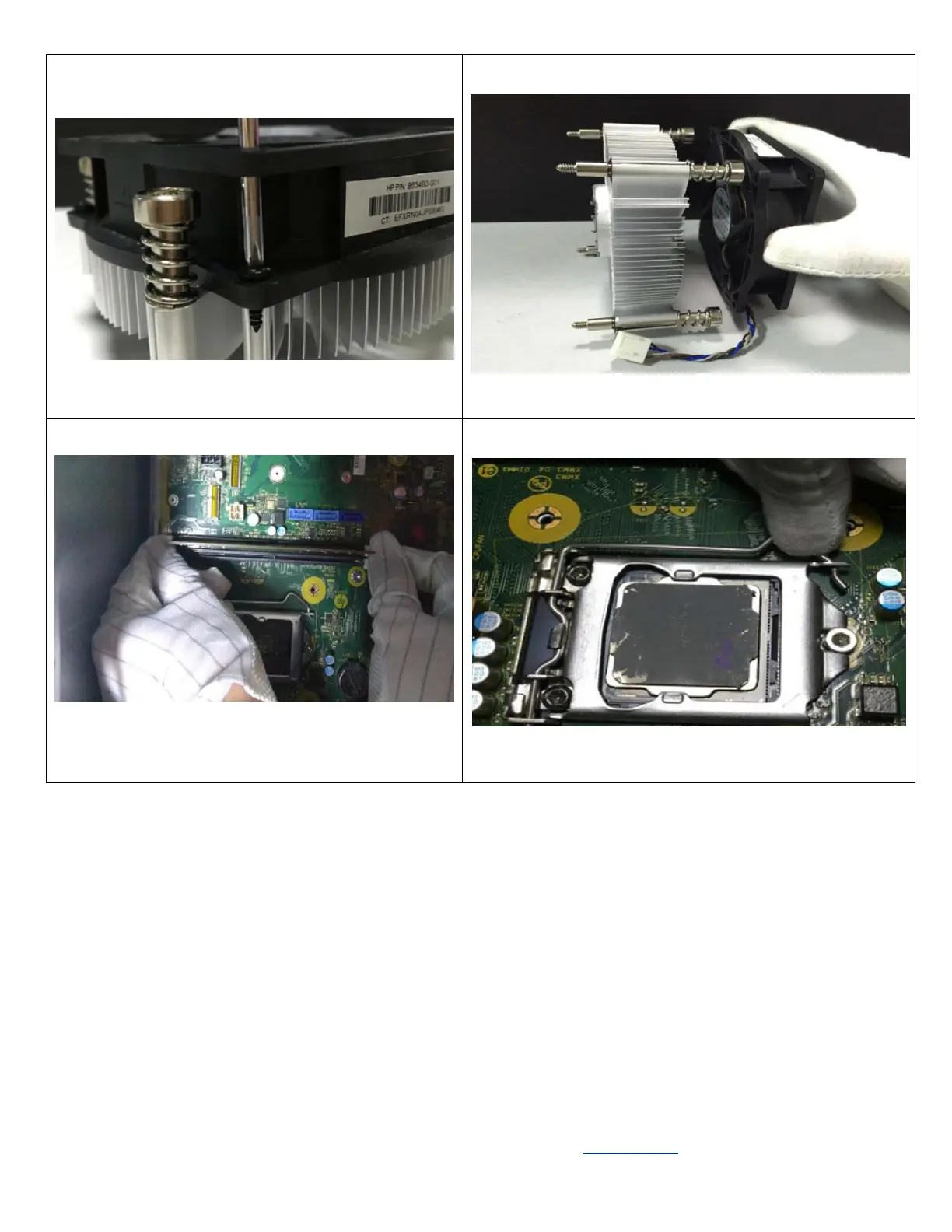

Step13 Use T-15 screwdriver to loose the
screws and remove the fan
Step14 Separate the fan from CPU heat sink
Step15 Remove memory from the MB
Step16 Rotate the handle and open it up
