HP Slim Desktop S01

EL-MF877-00 Page 6
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

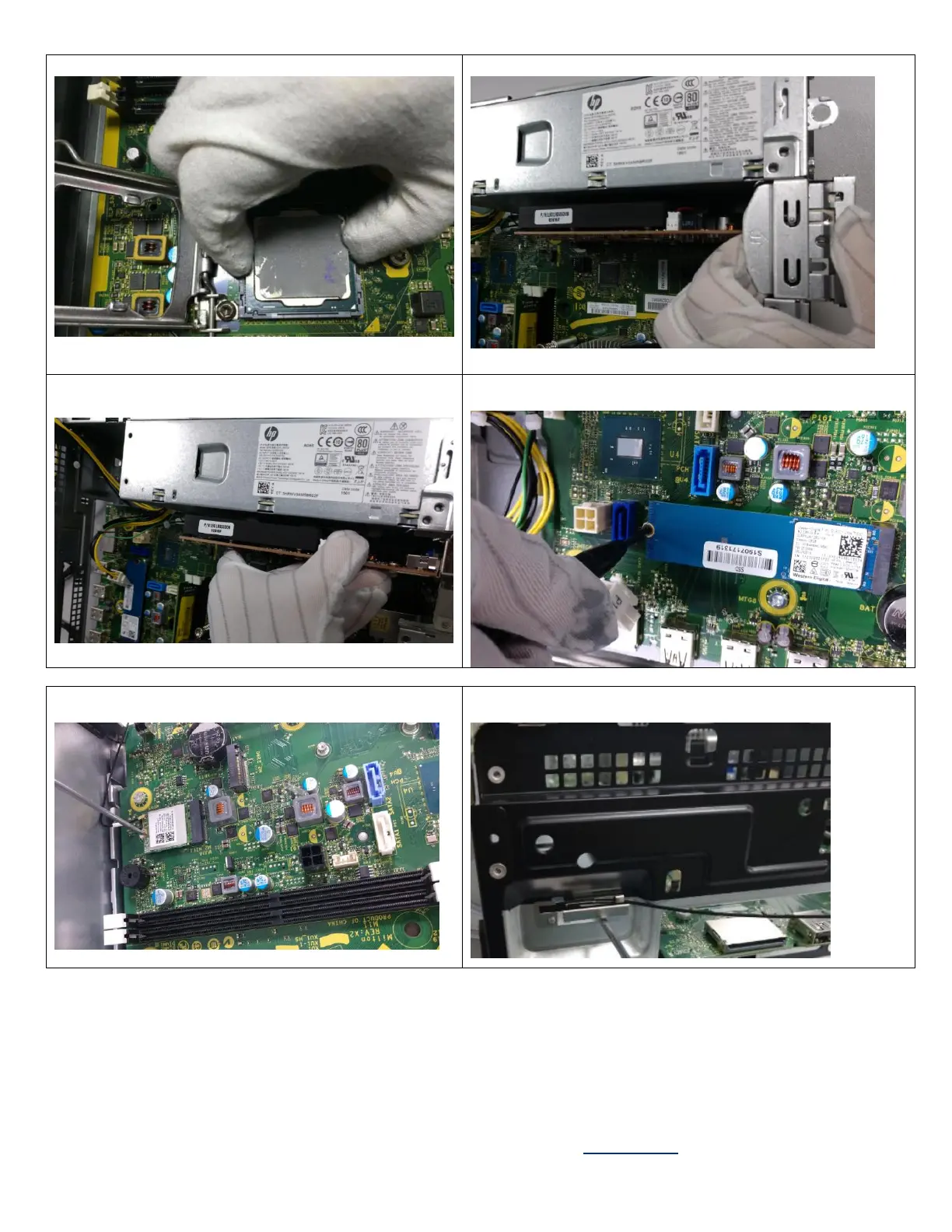

Step17 Remove the CPU from the board
Step18 Open the GFX from Lock
Step19 Remove the GFX from the board
Step20 Remove SSD M.2 Card
Step21 Remove WLAN M.2 Card
Step22 Remove the Antenna from chasis
