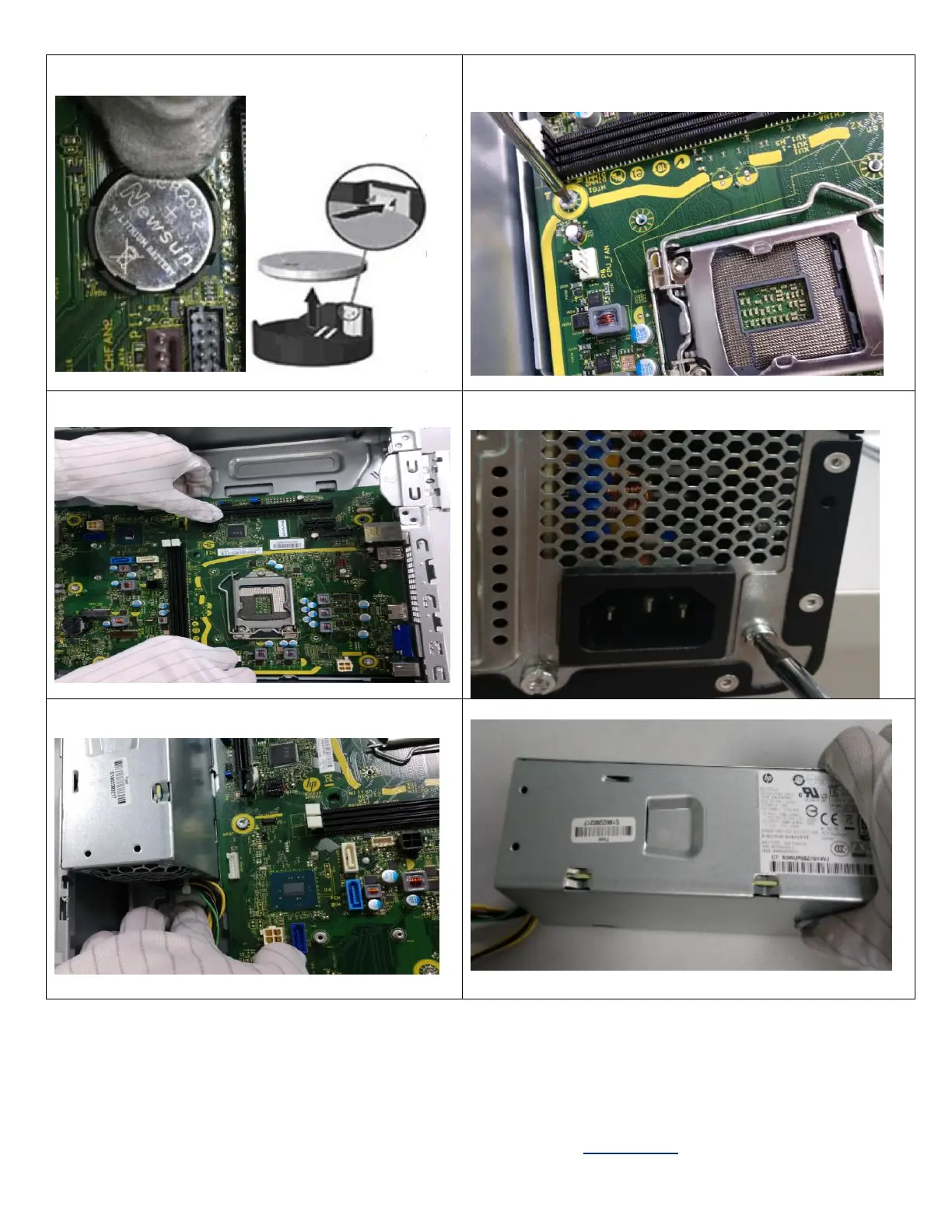

Step23 Remove the battery from the system board
Step24 Use T-15 screwdriver to loose the screws of MB from
board
Step25 Remove MB from chassis
Step26 Use T-15 screwdriver to loose the screws of PSU
Step27 Press the PSU’s latch on chassis
Step28 Remove the PSU from chassis
