HP Thin Client T740 User Manual

To use the HP Quick Release:

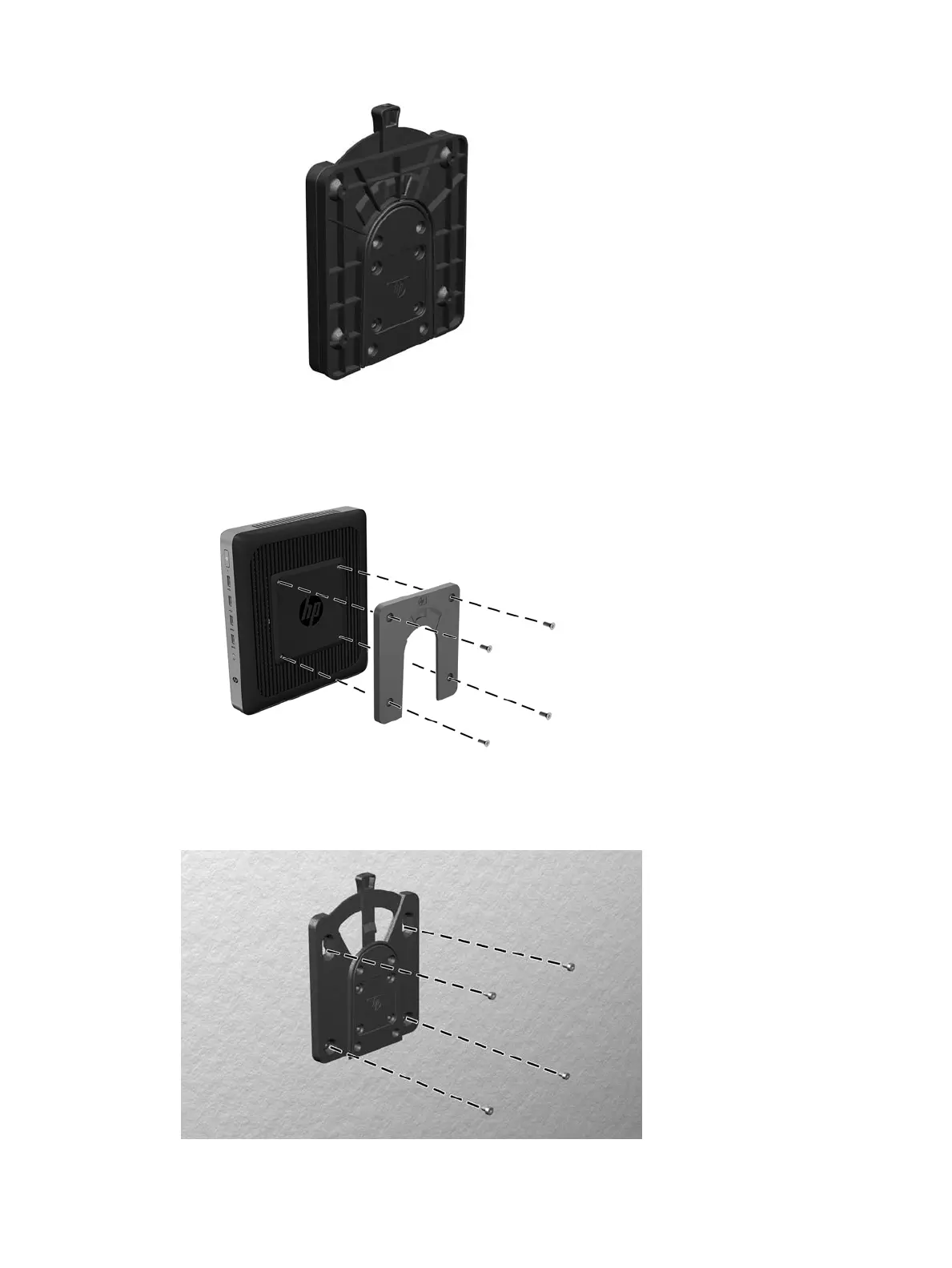

1. Using four 10 mm screws included in the mounting device kit, attach one side of the HP Quick Release to
the thin client as shown in the following illustration.
2. Using four screws included in the mounting device kit, attach the other side of the HP Quick Release to
the device to which you will mount the thin client. Make sure the release lever points upward.
10 Chapter 2 Setup

HP Thin Client T740 Specifications

General

Power	65 W external power adapter
Graphics	AMD Radeon Vega 8 Graphics
Memory	Up to 32 GB DDR4-2400 SDRAM
Networking	Optional Wi-Fi 5 (802.11ac)
Ports	2 x DisplayPort 1.2
Operating System	HP ThinPro HP Smart Zero Core Windows 10 IoT Enterprise
Dimensions	3.5 x 20 x 20 cm
