HP TouchSmart Series User Manual

Setting Up the HP TouchSmart PC 5

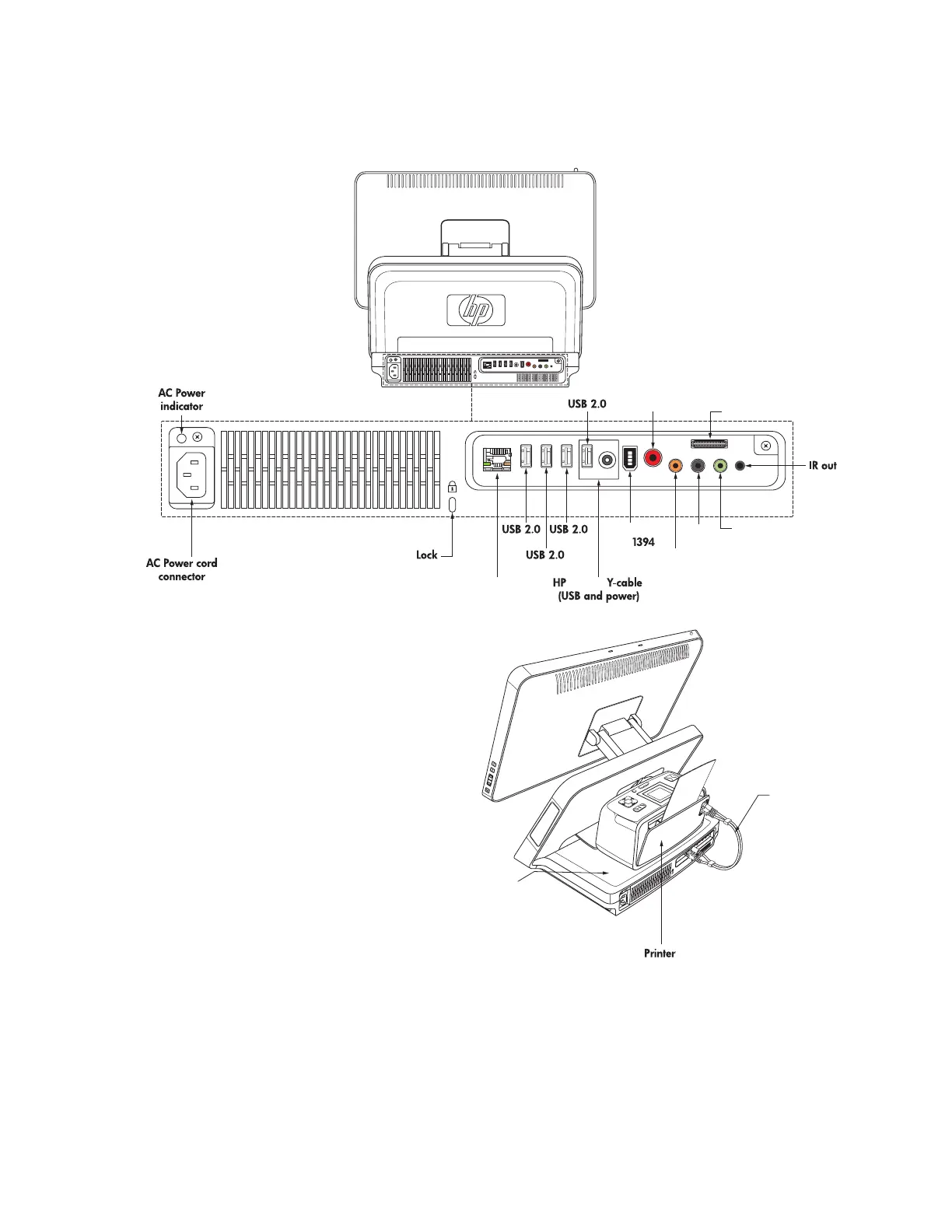

Rear connectors — Connectors for AC power cord (with a green indicator light), a Kensington lock slot,
LAN (for a wired Ethernet connection), four USB 2.0, HP printer Y-cable connectors (USB and power
output), FireWire
®
(IEEE 1394) (6-pin), digital audio out (SPDIF), subwoofer/center, left and right surround,
and left and right front are each 3.5 mm dual-channel analog audio out connectors, IR (infrared emitter)
out, and a mini-VGA out connector.
HP Printer dock — place one of select
models of HP Photo printers (sold separately)
on the printer dock on the back of the
HP TouchSmart PC to save counter space.
You can also connect the HP printer without
using a separate power cable by using the
HP printer Y-cable. See “Connecting an
HP Photo Printer.”
10/100/1000 GB
LAN (Ethernet)
printer
FireWire
(IEEE
)
L - R
Surround
Center/
Subwoofer
Digital audio
out (SPDIF)
L - R
Front
Mini-VGA Out
+
-
HP P
hotosmart
A617
OK
Selec
t
Layo
ut
Fix
Men
u
Zoom
+
-
X
C
orrect
Pr
int
HP printer Y-cable
HP printer dock
