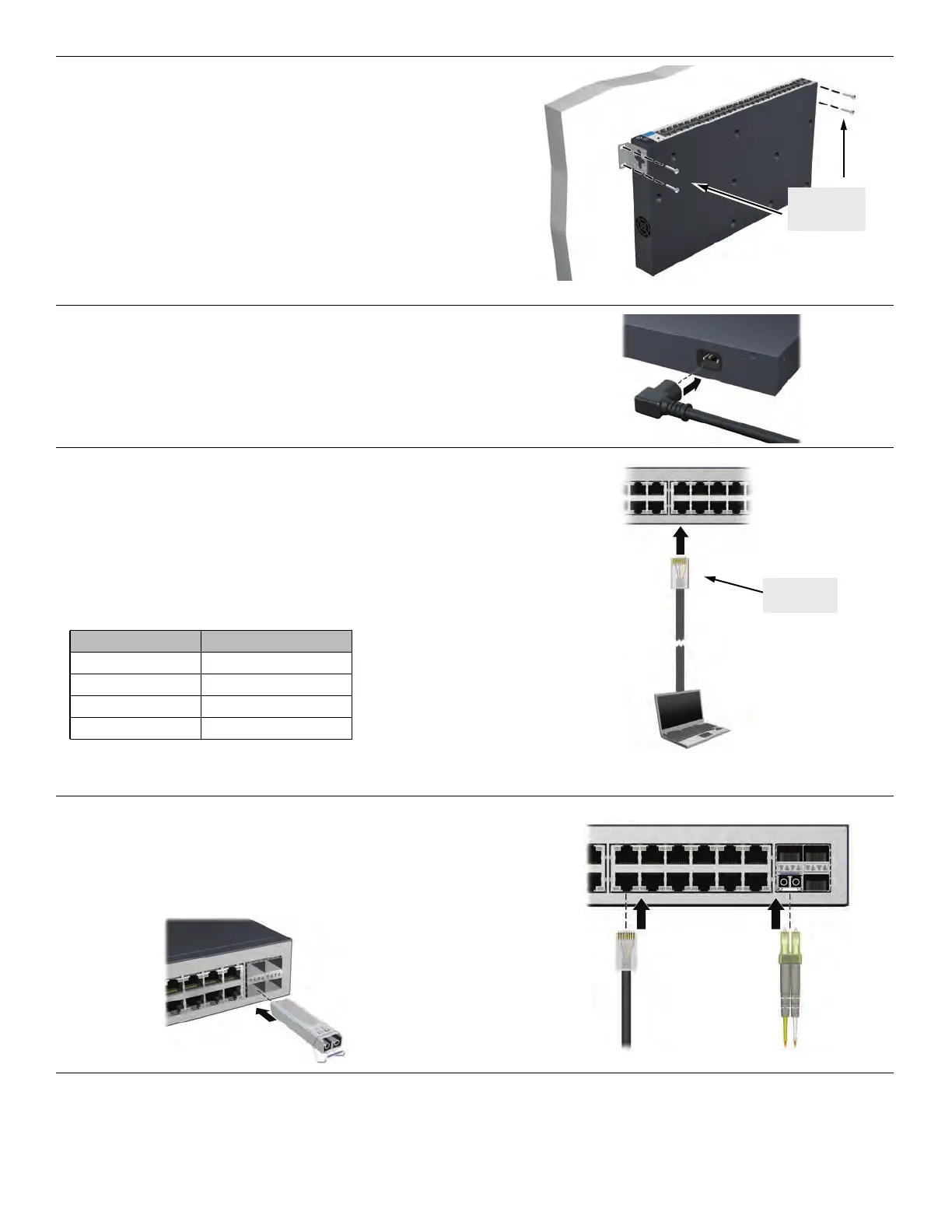

4. Install the Switch Hardware (Continued)

5/8-inch #12

screws

Wall or Under-Table: Use a #1 Phillips (cross-head) screwdriver

to attach the supplied brackets to the switch using the eight 8-mm

M4 screws in the orientation shown.

For wall-mounting, the network ports must be facing up. Do not

mount the switch with ventilation or fan ducts facing up or down.

(See “Installation Precautions” on page 4.)

Attach the switch to the wall or wood surface with four 5/8-inch

number 12 wood or tap screws (not included).

5. Power On the Switch.

6. Configure the switch for operation on your network

(minimal configuration).

Using a standard Ethernet cable, connect a PC directly to the

switch.

Then configure the PC’s IP Address and Subnet Mask to allow it to

communicate with the switch through your PC’s Web browser.

Switch factory-default settings:

Parameter Factory Default Setting

Password <blank>

IP address 192.168.2.10

Subnet mask 255.255.255.0

Default gateway not set

See the example on page 3.

Connect to

any port

7. Connect Network Cables.

Note: For transceiver connections, install and use only

HP mini-GBIC/SFP transceivers supported by the switch.

See “Mini-GBIC/SFP Installation Notes” on page 3.

V1810-48G_QSG-Jan2011.fm Page 2 Monday, March 21, 2011 10:36 PM
