Installing the Switch
Installation Procedure
When a network cable from an active network device is connected to the port,
the port LEDs for that port should go on (if Green Mode is not enabled). If the
port LEDs do not go on when the network cable is connected to the port, see
“Diagnosing with the LEDs” on page 4-2.

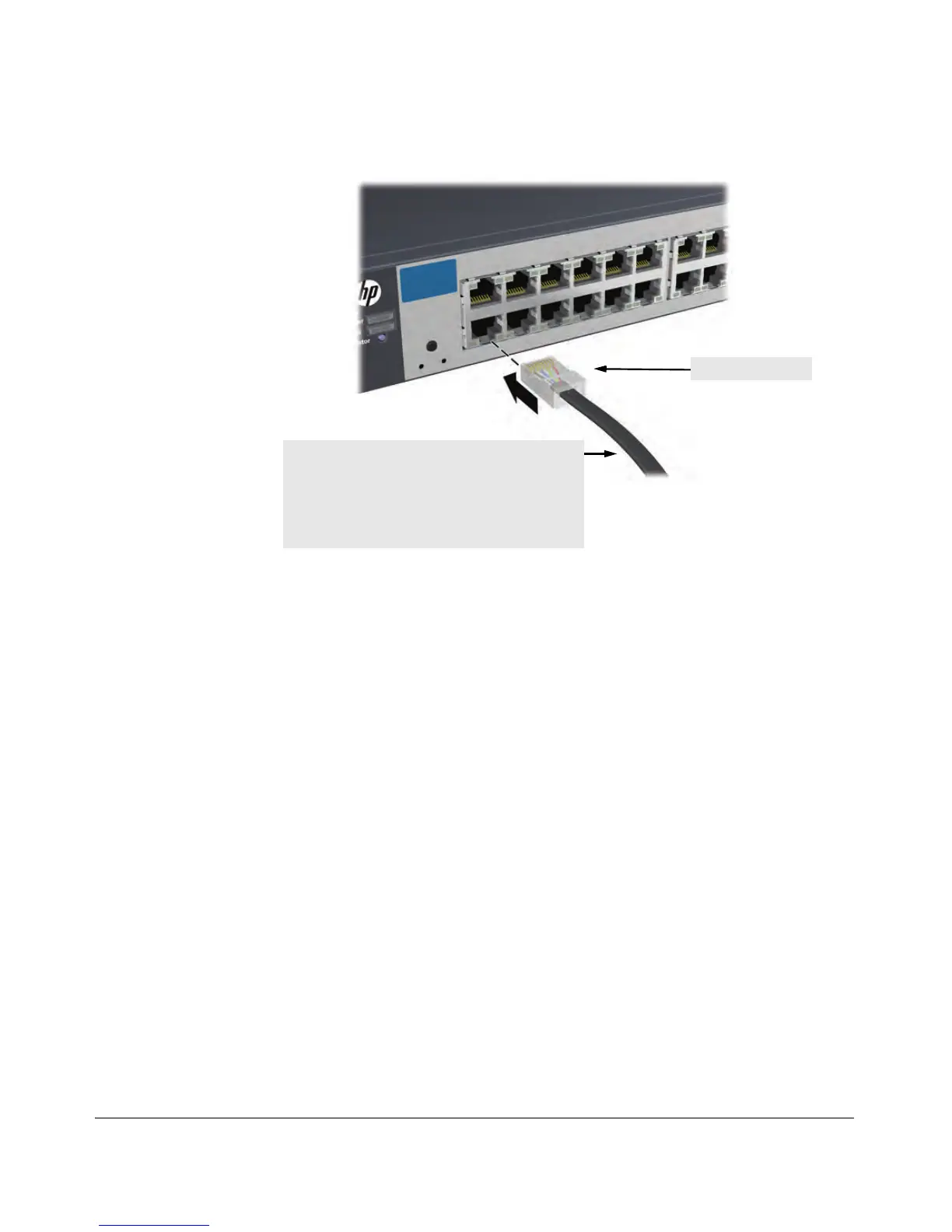

RJ-45 connector
100-ohm unshielded or shielded twisted-pair cable:
• Category 3, 4, or 5 for 10 Mbps ports
• Category 5 only for 100 Mbps ports
• Category 5, 5e, or 6 for 1000 Mbps ports
Maximum distance: 100 meters
