Specifications
Mode Conditioning Patch Cord

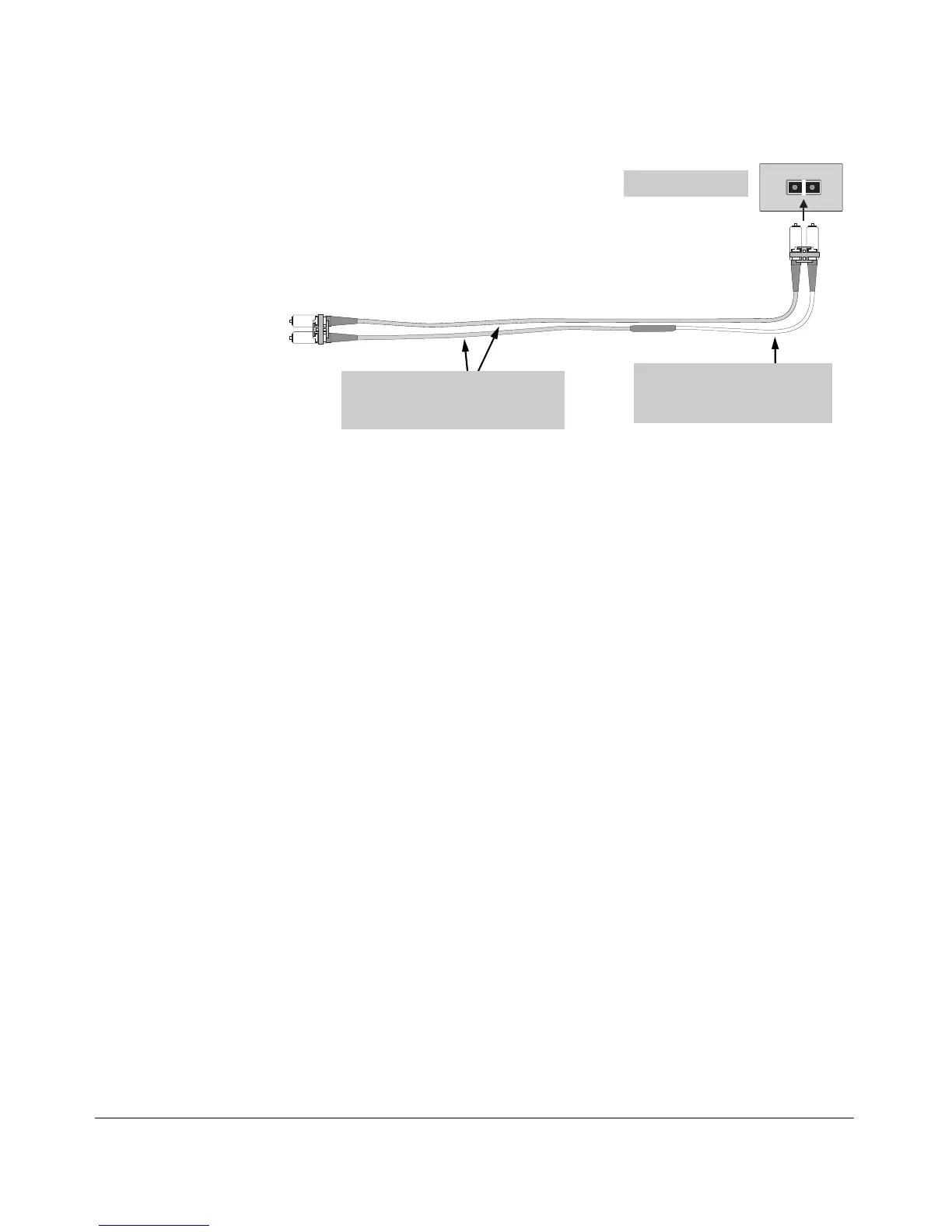

Example: Connecting a Mode Conditioning Patch Cord for Gigabit-LX
Make sure you purchase a patch cord that has appropriate connectors on each
end, and has multimode fibers that match the characteristics of the multimode
fiber in your network. Most important, the core diameter of the multimode
patch cord must match the core diameter of the multimode cable
infrastructure (either 50 or 62.5 microns).
To ne two rk
multimode
cabling
Mode Conditioning
Patch Cord
The multimode cable in the patch cord
must match the characteristics of your
network cable
Gigabit-LX port
Single mode section plugs into Tx
port on Gigabit-LX Transceiver or
Gigabit-LX mini-GBIC
