HP Workstation x4000 Supplementary Guide

HP x4000 Service Information
Upgrading Memory
Chapter 112

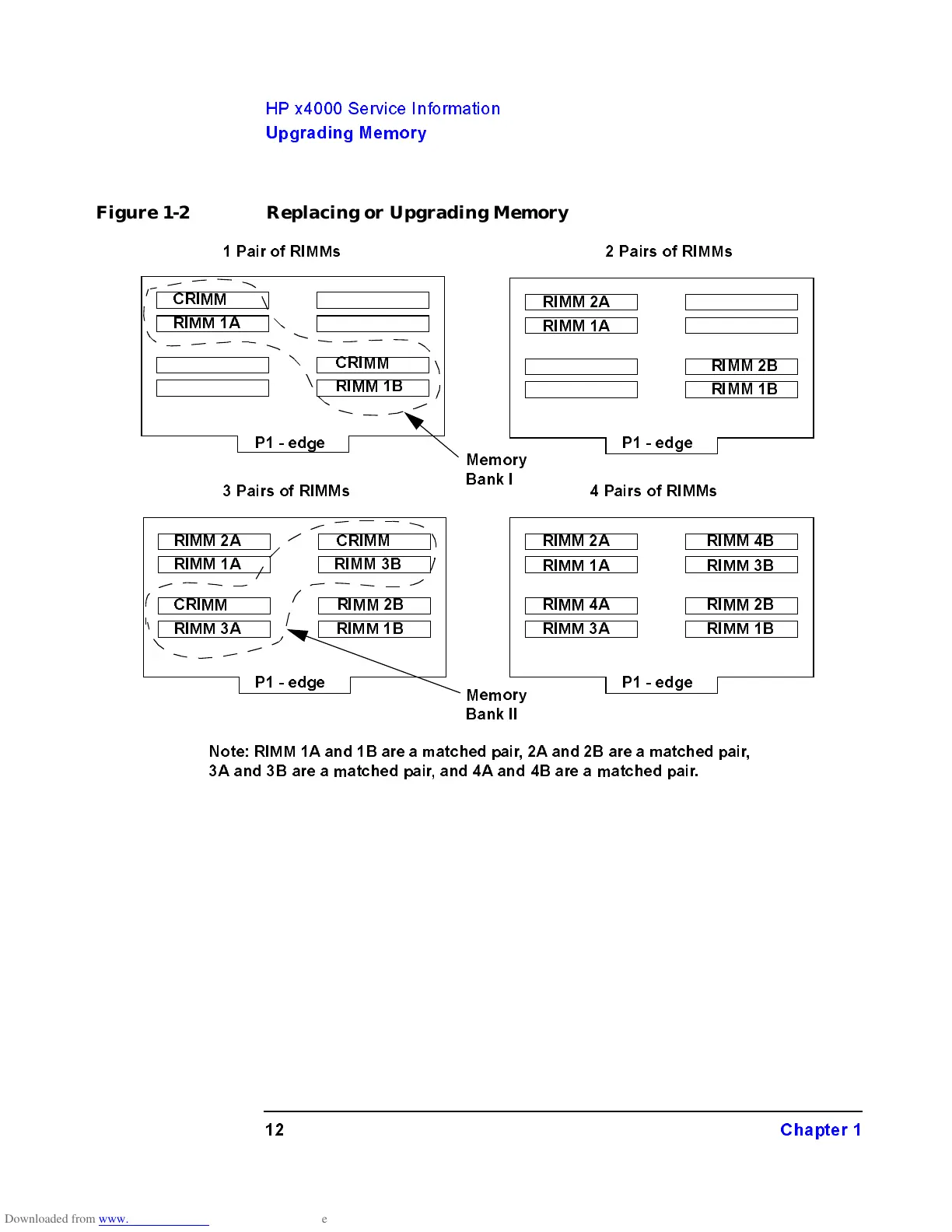

Figure 1-2 Replacing or Upgrading Memory
P1 - edge P1 - edge
P1 - edge P1 - edge
1 Pair of RIMMs 2 Pairs of RIMMs
3 Pairs of RIMMs 4 Pairs of RIMMs
CRIMM
CRIMM
RIMM 1A
RIMM 1B
RIMM 1A
RIMM 1A
RIMM 1A
RIMM 1B
RIMM 1B RIMM 1B
RIMM 2A
RIMM 2B
RIMM 2A RIMM 2A
RIMM 2BRIMM 2B
CRIMM
RIMM 3A
CRIMM
RIMM 3B
RIMM 3A
RIMM 4B
RIMM 4A
RIMM 3B
Note: RIMM 1A and 1B are a matched pair, 2A and 2B are a matched pair,
3A and 3B are a matched pair, and 4A and 4B a re a matched pair.
Memory
Bank I
Memory
Bank II
