Power dissipation

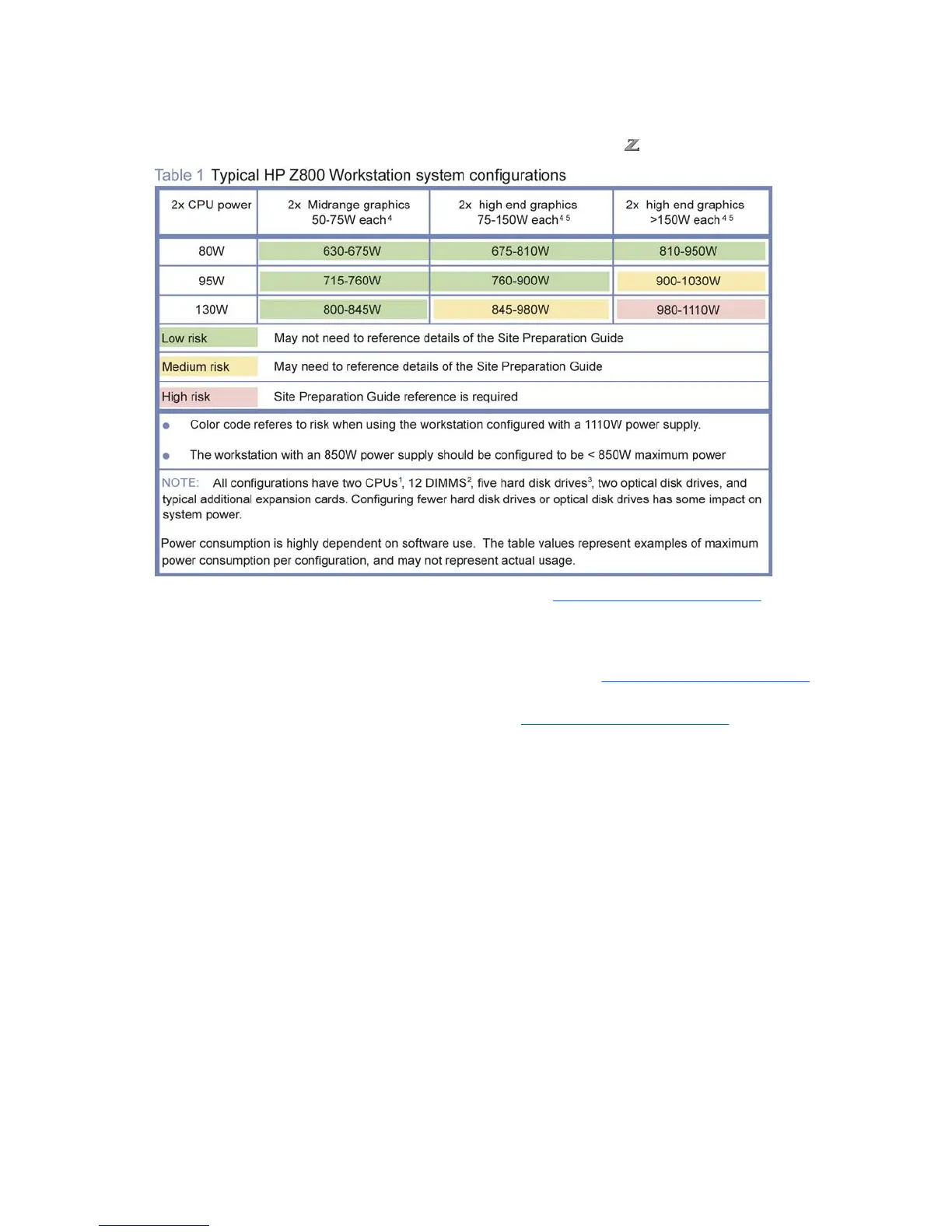

The following table contains typical system configurations for an HP 800 Workstation.

For maximum power consumed per CPU, see product QuickSpecs at http://www.hp.com/go/productbulletin/.

4-or 8- GB DDR3-1333 MHz Registered DIMMs. Estimation does not extend to 16 GB DIMMs.

Five SAS 15K HDDs.

For maximum power consumed per graphics card, see product QuickSpecs at http://www.hp.com/go/productbulletin/.

Maximum graphics power supported with an 850W power supply is one 175W graphics card, or two 100W graphics

cards. For maximum graphics power, see product QuickSpecs at

http://www.hp.com/go/productbulletin/.

4 Power consumption and cooling ENWW

Questions and Answers:

Need help?

Do you have a question about the HP Workstation Z800 and is the answer not in the manual?

HP Workstation Z800 Specifications

General

Processor	Intel Xeon 5500 and 5600 series
Chipset	Intel 5520
Memory	Up to 192 GB DDR3 ECC
Storage	Multiple SATA or SAS HDD/SSD options
Graphics	NVIDIA Quadro and ATI FirePro
Expansion Slots	2 PCI Express Gen2 x16 slots; 2 PCI Express Gen2 x8 slots; 1 PCI slot
Operating System	Genuine Windows Vista
Power Supply	850W or 1110W
