HP Workstation Z800 User Manual

Cooling considerations
To ensure proper ventilation and cooling for your workstation, observe the following guidelines.
●
Keep your workstation in an area where the airflow is not obstructed.
●
Keep the workstation off from surfaces where dust can gather.
●
Remove dust on the front panel bottom (vent area) and the rear fans with a small vacuum,
compressed air, or dust rag.
●
Keep the front and back of the workstation at least 0.15 meters (6 inches) away from a wall or other
obstruction, as shown:

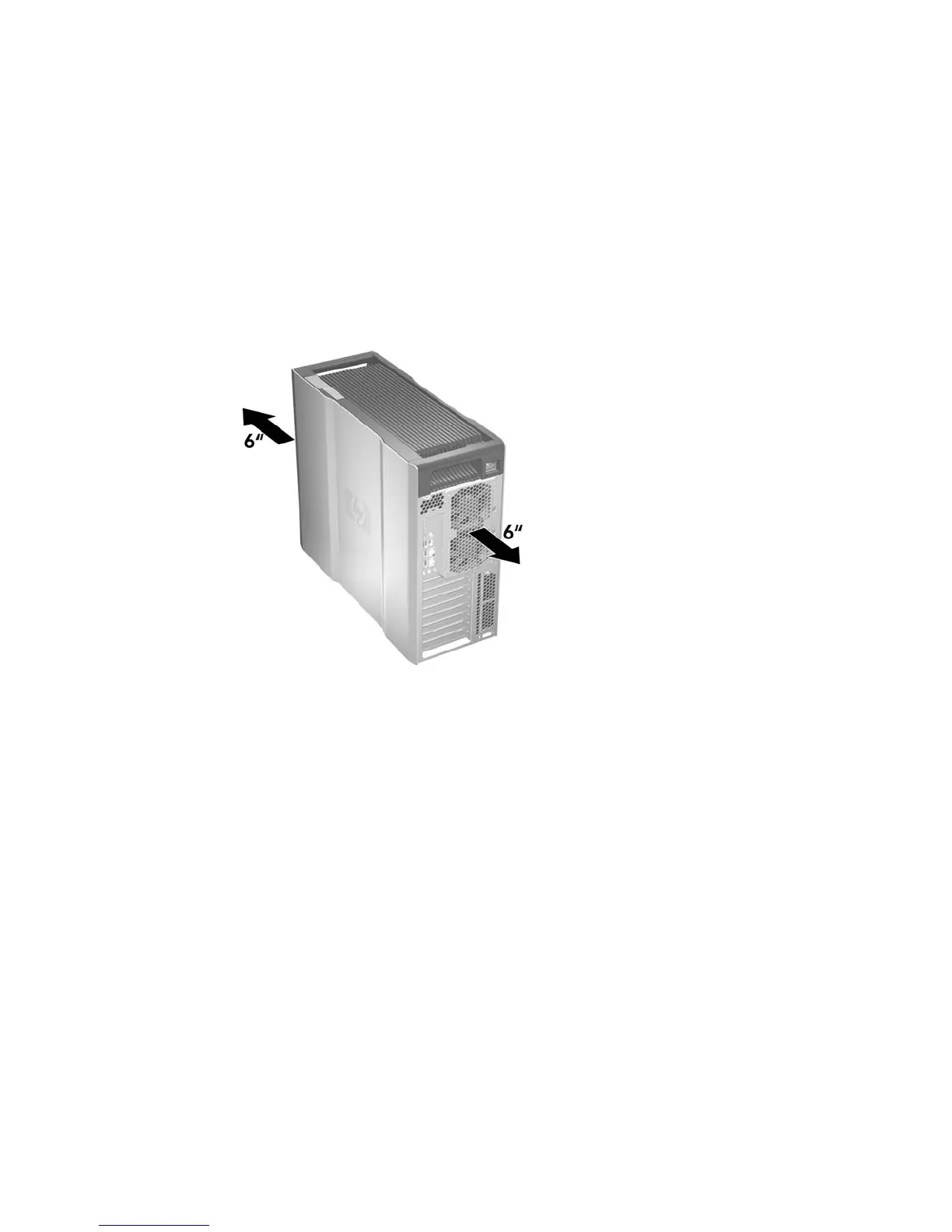

Figure 1 Maintain proper clearance
ENWW Cooling considerations 5

HP Workstation Z800 Specifications

General

Processor	Intel Xeon 5500 and 5600 series
Chipset	Intel 5520
Memory	Up to 192 GB DDR3 ECC
Storage	Multiple SATA or SAS HDD/SSD options
Graphics	NVIDIA Quadro and ATI FirePro
Expansion Slots	2 PCI Express Gen2 x16 slots; 2 PCI Express Gen2 x8 slots; 1 PCI slot
Operating System	Genuine Windows Vista
Power Supply	850W or 1110W
