Installing an IEEE-1394 card
HP xw8000/xw9000 series workstations
1. Connect one connector on the Y-adapter power cable to the workstation optical drive power wire 1.
Connect the second connector on the Y-adapter power cable to the optical drive power connector 2.
Connect the third connector on the Y-adapter power cable to the power connector on the IEEE-1394
card 3.

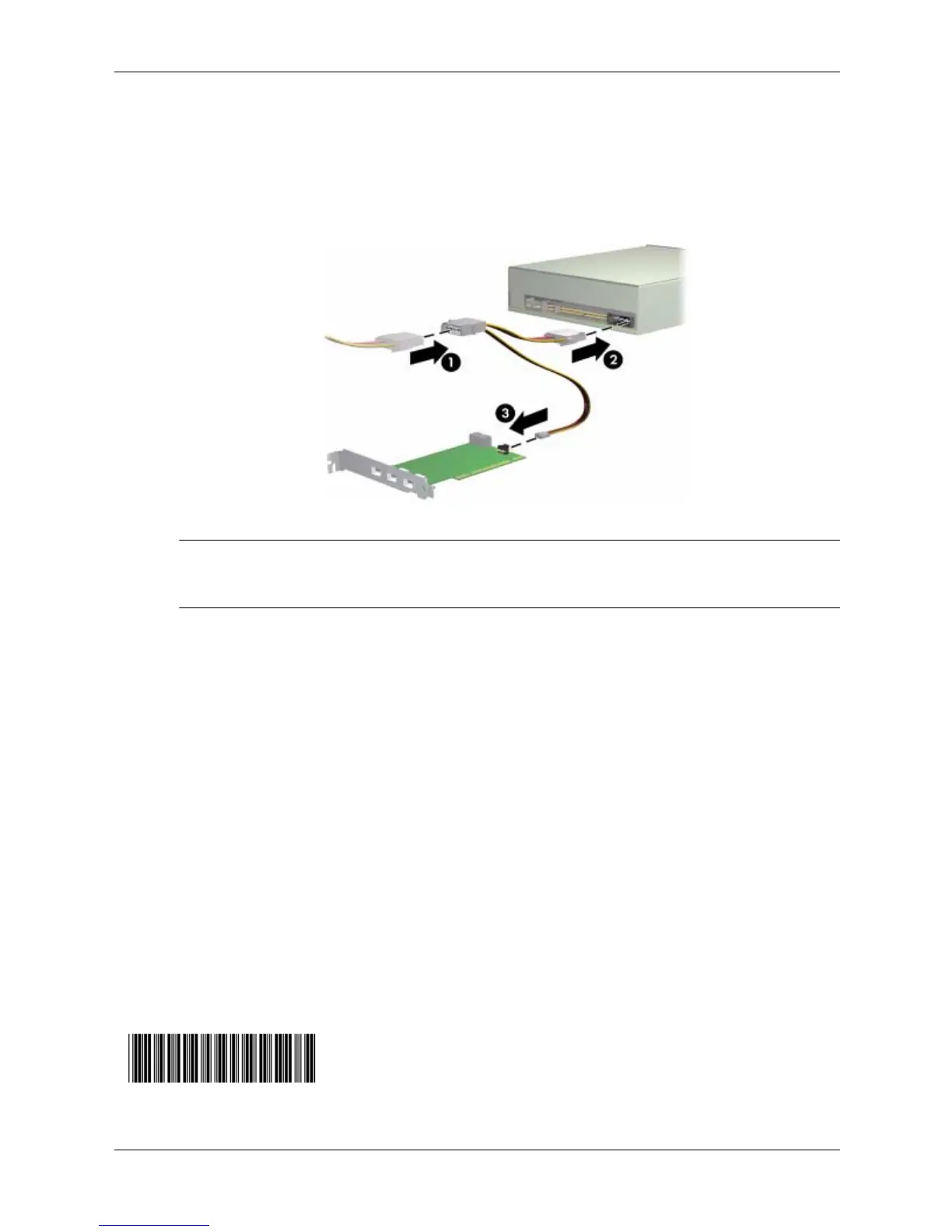

Figure 4 Connect IEEE-1394 Y-adapter power cable
✎
NOTE: IEEE-1304b functionality is provided by the IEEE-1394 card. IEEE-1394a functionality is
supported to the workstation front IO connector only. Leave the 1394a front bezel I/O cable connected to
the workstation system board.
Step 5—Reassemble the workstation
After installing the IEEE-1394 card, reassemble the workstation using the instructions in the workstation
documentation. The reassembly process includes reinstalling the side access panel, restoring power to the
workstation, and restarting the workstation.
© 2006 Hewlett-Packard Development Company, L.P. The HP Invent logo is a registered
trademark of Hewlett-Packard Development Company, L.P. Microsoft and Windows are U.S.
registered trademarks of Microsoft Corporation. Linux is a U.S. registered trademark of Linus
Torvalds.
