HP xw4400 Mini White Paper

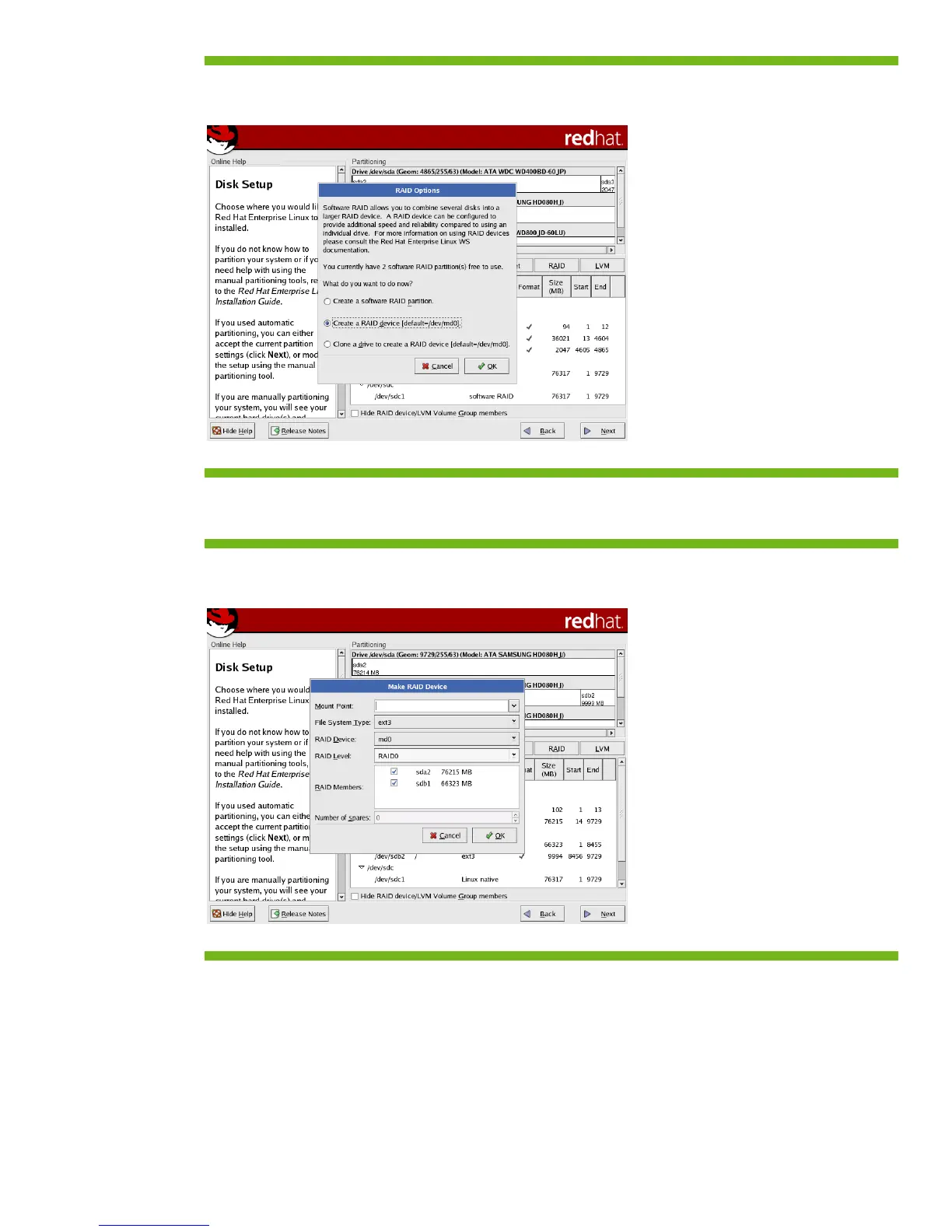

Figure 6. Creating a RAID Device
12. Choose a mount point, file system type, device, and RAID level for this partition.
Figure 7. Creating a RAID Device
13. Click OK.
14. Continue with setup as normal.
The Red Hat Enterprise Linux Anaconda installer only supports RAID-0, RAID-1, and RAID-5. Other
levels or nested RAID must be configured manually after installation. If you are creating a nested RAID
array, you can either configure the “bottom” RAID level (for example, the RAID-1 array in the case of
nested RAID-10) in Anaconda and the “top” RAID level manually later, or configure both parts of the
nested RAID level manually after installation.
10

HP xw4400 Specifications

General

Processor	Intel Core 2 Duo
Chipset	Intel 975X
Memory	Up to 8 GB DDR2
Storage	SATA 3.0 Gb/s
Graphics	NVIDIA Quadro FX series
Operating System	Windows XP Professional
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 3 PCI
Ports	6 USB 2.0, 2 PS/2, 1 serial, 1 parallel, 1 RJ-45
Optical Drive	DVD-ROM
