HP xw6200 - Page 3

Sliding Rack Mount Kit Installation
Page 3 of 10

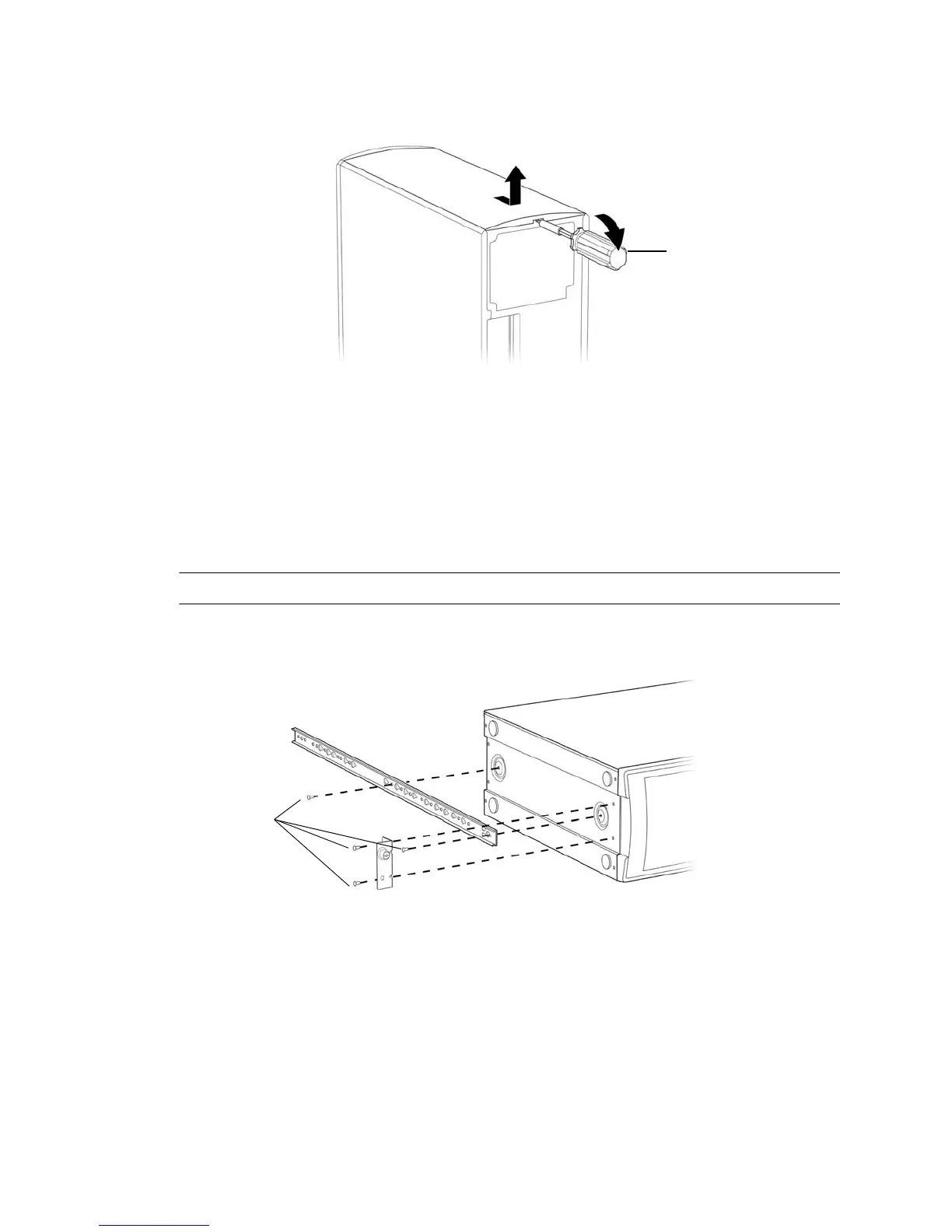

Install the Rails and Flanges
1. Align the left bracket with the screw holes on the left side (bottom) of the chassis 1.
2. Use a Torx driver and two screws to attach the flange 2.
3. Align the inner slide with the two screw holes on the left side (bottom) of the chassis 3.
NOTE: Front inner slide mounting hole is keyhole shaped.
4. Use a Torx driver and two screws to attach the slide 4.
5. Repeat this process for the right side (top) of the chassis.
1
B
D
3
4
C
1
2
